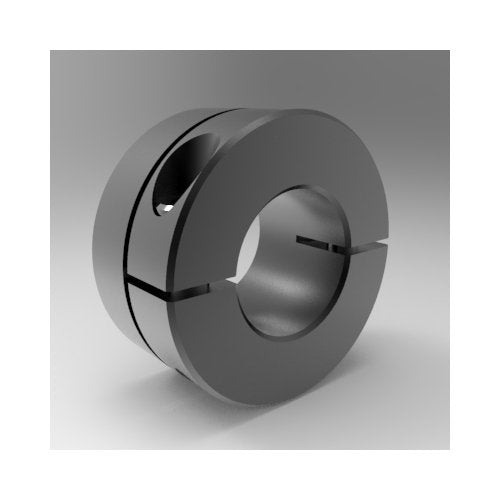

Accu-Clamp™ Collars One-Piece Type - Precision Shaft Collar
Accu-Clamp™ Collars One-Piece Type - Precision Shaft Collar
SKU:ROU-1c7086
Accu-Clamp™ Collar with balanced design, non-marring surface, and precision machining options for exacting applications.
Regular price
$61.76
Regular price
Sale price
$61.76
Unit price
per
Initiate Order
Accu-Clamp™ Collars One-Piece Type - Precision Shaft Collar
$61.76
Quantity: 1
Claim Your Seller Account
Accu-Clamp™ Collars One-Piece Type - Precision Shaft Collar
$61.76
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to a balanced design with screw heads in opposing directions for enhanced stability and usability. The Accu-Clamp™ Collar features a non-marring, solid working face that is machineable or hardened and ground. Made of 1117 Steel for easy machinability, this collar offers high strength with an integral clamp. Choose between the machineable version for customizable modifications or the hardened and ground option for extreme precision in bearing surfaces. Perfect for applications demanding exact squareness and flatness.
Product Specifications
Dimensional Attributes Bore Size
3/4 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Width
1.000 in
Specifications Alloy
1117
Specifications Approximate Weight
0.49 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
61.76 USD
Specifications Material
Steel
Specifications Part Number
1L012ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Machineable
Specifications Upc Code
662786027086
