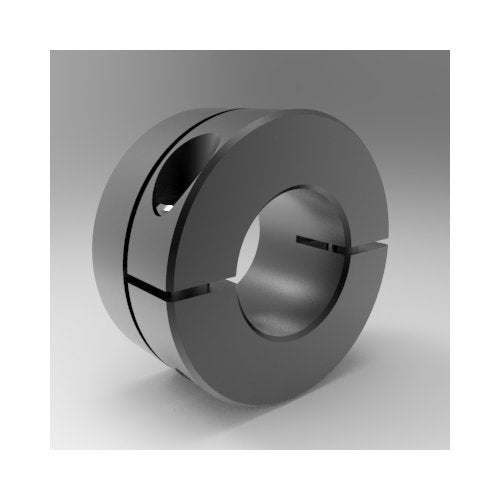

Accu-Clamp Collars - Hardened & Ground Precision Shaft Collar
Accu-Clamp Collars - Hardened & Ground Precision Shaft Collar
SKU:ROU-f05189
Enhanced Accu-Clamp™ Collars with balanced design & solid working face for precision applications. Available in machineable or hardened options.
Regular price
$64.39
Regular price
Sale price
$64.39
Unit price
per
Initiate Order
Accu-Clamp Collars - Hardened & Ground Precision Shaft Collar
$64.39
Quantity: 1
Claim Your Seller Account
Accu-Clamp Collars - Hardened & Ground Precision Shaft Collar
$64.39
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to the new generation of Accu-Clamp™ Collars with a balanced design featuring screw heads in opposing directions for enhanced performance and reliability. These one-piece split collars boast a solid working face, available in machinable or hardened and ground options. Constructed from 1117 Steel, these collars combine non-marring clamping with exceptional strength. The machineable variant allows for easy customization, while the hardened and ground version offers unparalleled precision for applications requiring extreme squareness and flatness.
Product Specifications
Dimensional Attributes Bore Size
1/2 in
Dimensional Attributes Outside Diameter
1.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Width
0.750 in
Specifications Alloy
1117
Specifications Approximate Weight
0.19 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
64.39 USD
Specifications Material
Steel
Specifications Part Number
1L008ACG
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Hardened & Ground
Specifications Upc Code
662786027178
