Accu-Clamp Flange Adapter Rings
Accu-Clamp Flange Adapter Rings
SKU:ROU-783bb6
Enhance coupling flange OD with precision using Accu-Clamp Adapter Rings. Versatile mounting options, weldable, multi-material availability. RoHS2 & REACH compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Accu-Clamp Flange Adapter Rings
$39.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Flange Adapter Rings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

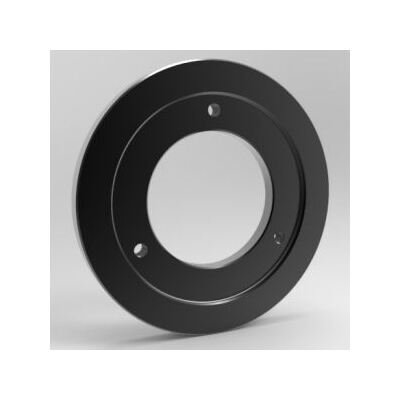

The Accu-Clamp Flange Adapter Rings are precision-engineered to extend the outer diameter of Accu-Flange™ Collars and Precision Sleeve Flange Couplings. Featuring three adapter holes for versatile mounting options, these rings can be machined to fit any bolt pattern with ease. Available in 1018 Steel, Stainless Steel, and Aluminum, these weldable adapter rings provide robust support and compatibility. Designed for industrial applications, they offer reliability and durability while meeting RoHS2 and REACH compliance standards.
Product Specifications
Dimensional Attributes Accu Flange Collar Bore Size
5/8 in
Dimensional Attributes Inside Diameter
1.627 in
Dimensional Attributes Mounting Hole
10-24
Dimensional Attributes Outside Diameter
5.625 in
Dimensional Attributes Width
0.375 in
Specifications Alloy
1018
Specifications Approximate Weight
2.06 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
FRL0103755625
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786031571
