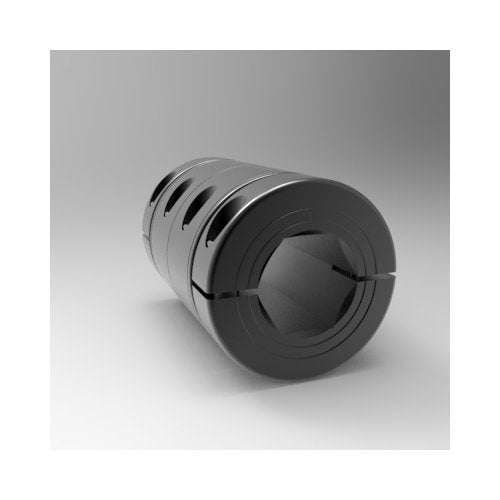

Accu-Clamp Precision Hex Bore Couplings (Two-Piece Split)
Accu-Clamp Precision Hex Bore Couplings (Two-Piece Split)
SKU:ROU-9c08b2
Achieve precise shaft alignment with Accu-Clamp Precision Hex Couplings. Easy assembly, high clamping power, ideal for hexagonal shafts.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Accu-Clamp Precision Hex Bore Couplings (Two-Piece Split)
$39.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Hex Bore Couplings (Two-Piece Split)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Clamp Precision Hex Bore Couplings offer exceptional shaft alignment and precision with axial runout less than .001" TIR. Designed for hexagonal shafts, these two-piece couplings allow convenient assembly and adjustment. Featuring Stafford's exclusive solid center section for a close tolerance fit, these couplings have integral self-centering clamping collars at both ends. The precision machined design is non-marring, easy to adjust, and provides high clamping power. Available in Steel, Stainless Steel, and Aluminum options.
Product Specifications
Dimensional Attributes Bore Size A
5/8 in
Dimensional Attributes Bore Size B
5/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
1215
Specifications Approximate Weight
0.76 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
13L010010PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039546
