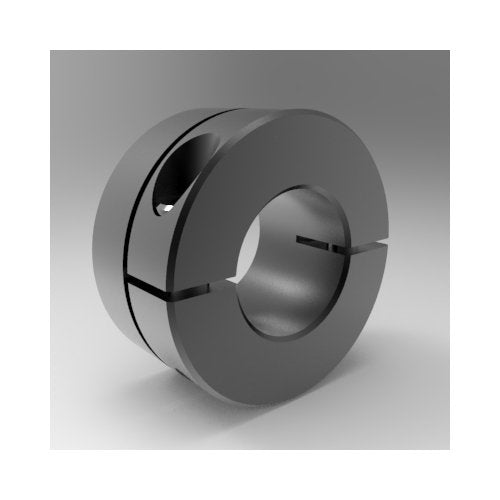

Accu-Clamp Precision Shaft Collar - Hardened & Ground 1-1/4 in Bore

Name: Accu-Clamp Precision Shaft Collar - Hardened & Ground 1-1/4 in Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-7a8b0f
Price: 88.74 USD
Availability: OutOfStock

SKU:ROU-7a8b0f

Enhanced Accu-Clamp Precision Shaft Collar with balanced design for stability and 1117 Steel construction. Choose machineable or hardened & ground.

$88.74

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade to the new Accu-Clamp Precision Shaft Collar featuring a balanced design with opposing screw heads, enhancing stability. Crafted from 1117 Steel for easy machinability, this collar provides a non-marring, high-strength hold. Choose between a machineable face for custom modifications or a hardened and ground surface for extreme squareness and flatness needs. With a precise bearing surface, this collar ensures optimal performance and durability for your applications.

Product Specifications

Dimensional Attributes Bore Size

1-1/4 in

Dimensional Attributes Outside Diameter

2.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Width

1.000 in

Specifications Alloy

1117

Specifications Approximate Weight

0.68 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

88.74 USD

Specifications Material

Steel

Specifications Part Number

1L104ACG

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Hardened & Ground

Specifications Upc Code

662786027239

Accu-Clamp Precision Shaft Collar - Hardened & Ground 1-1/4 in Bore
