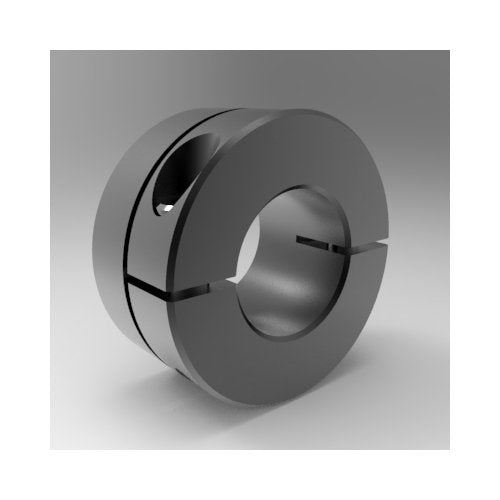

Accu-Clamp Precision Shaft Collar - Hardened & Ground Steel 1-3/4in Bore
Accu-Clamp Precision Shaft Collar - Hardened & Ground Steel 1-3/4in Bore
SKU:ROU-836470
Enhance precision with Accu-Clamp Precision Shaft Collar for ultimate strength and squareness. Machineable face, non-marring hold, 1117 Steel.
Regular price
$77.27
Regular price
Sale price
$77.27
Unit price
per
Initiate Order
Accu-Clamp Precision Shaft Collar - Hardened & Ground Steel 1-3/4in Bore
$77.27
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Shaft Collar - Hardened & Ground Steel 1-3/4in Bore
$77.27
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade to the superior Accu-Clamp Precision Shaft Collar with a balanced design featuring opposing screw heads. Crafted from 1117 Steel, this collar boasts a machineable or precise hardened and ground working face for extreme squareness and non-marring hold. The integral clamp provides high strength, while the black oxide finish adds durability. Modify the machineable face as needed. Ideal for applications requiring ultra-precision and strength.
Product Specifications
Dimensional Attributes Bore Size
1-3/4 in
Dimensional Attributes Outside Diameter
3.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Width
1.250 in
Specifications Alloy
1117
Specifications Approximate Weight
1.54 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
77.27 USD
Specifications Material
Steel
Specifications Part Number
1L112ACG
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Hardened & Ground
Specifications Upc Code
662786027260
