Accu-Clamp Precision Shaft Collar - One-Piece Split Design
Accu-Clamp Precision Shaft Collar - One-Piece Split Design
SKU:ROU-9948f1
Enhance industrial operations with the precision of Accu-Clamp Collars. High-strength, non-marring hold for precise applications.
Regular price
$102.82
Regular price
Sale price
$102.82
Unit price
per
Initiate Order
Accu-Clamp Precision Shaft Collar - One-Piece Split Design
$102.82
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Shaft Collar - One-Piece Split Design
$102.82
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

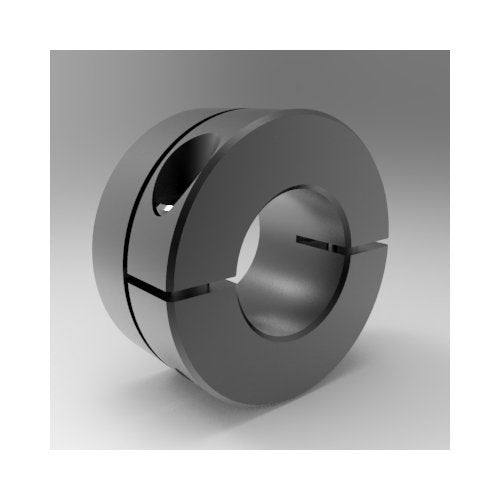

Upgrade your industrial operations with the Accu-Clamp Precision Shaft Collar. Crafted from 1117 Steel, this one-piece split collar features a balanced design with opposing screw heads for enhanced stability. The integral clamp delivers high strength while ensuring a non-marring hold. Choose between the machineable option for custom modifications or the hardened and ground variant for ultra-precise applications demanding extreme squareness and flatness. Experience reliable performance and versatility with the Accu-Clamp Collar.
Product Specifications
Dimensional Attributes Bore Size
2 in
Dimensional Attributes Outside Diameter
3.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
5/16-24 x 1
Dimensional Attributes Width
1.250 in
Specifications Alloy
1117
Specifications Approximate Weight
1.66 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
102.82 USD
Specifications Material
Steel
Specifications Part Number
1L200ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Machineable
Specifications Upc Code
662786027161
