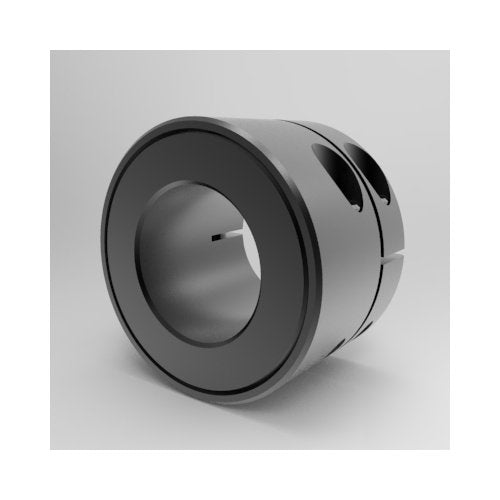

Accu-Clamp Precision Shaft Collar Two-Piece Split Design
Accu-Clamp Precision Shaft Collar Two-Piece Split Design
SKU:ROU-6bd4fa
Accu-Clamp Precision Shaft Collar for high-strength, non-marring hold on shafts. Crafted from 1117 Steel with machineable or precise hardened face. RoHS2 & REACH compliant.
Regular price
$27.99
Regular price
Sale price
$27.99
Unit price
per
Initiate Order
Accu-Clamp Precision Shaft Collar Two-Piece Split Design
$27.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Shaft Collar Two-Piece Split Design
$27.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Clamp Precision Shaft Collar features a balanced design with opposing screw heads for enhanced stability. Crafted from 1117 Steel, this collar offers a non-marring clamp with a machineable or hardened and ground solid face. Easily disassembled and repositionable on shafts, it provides high-strength holding without causing damage. The machineable version allows for user modifications while the hardened and ground variant ensures extreme squareness and flatness. With a black oxide finish, this collar meets RoHS2 and REACH compliance standards.
Product Specifications
Dimensional Attributes Bore Size
7/8 in
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Width
1.500 in
Specifications Alloy
1117
Specifications Approximate Weight
0.54 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2L014ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Machineable
Specifications Upc Code
662786027314
