Accu-Clamp Precision Sleeve Coupling with Keyways
Accu-Clamp Precision Sleeve Coupling with Keyways
SKU:ROU-4f3fd4
High-strength precision coupling for shaft alignment and zero backlash. Steel alloy with black oxide finish, keyways for secure connection. Axial runout less than .001 TIR.
Regular price
$108.76
Regular price
Sale price
$108.76
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Coupling with Keyways
$108.76
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Coupling with Keyways
$108.76
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

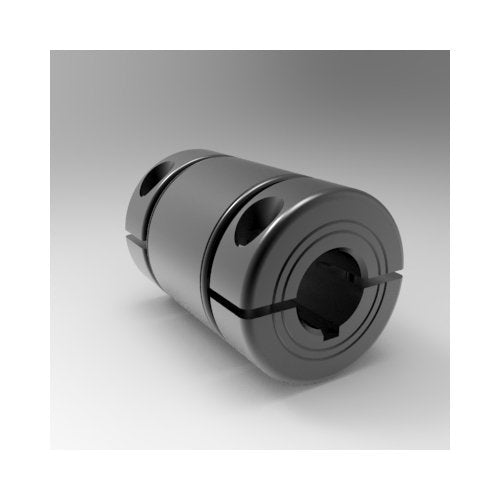

The Accu-Clamp Precision Sleeve Coupling with Keyways is a high-strength, one-piece split coupling designed for precise shaft alignment and zero backlash. Made of steel alloy with a black oxide finish, this coupling features a solid center section for close tolerance fit, integral clamping collars, and standard keyways for secure connection. With an axial runout less than .001 TIR, this coupling ensures accuracy and efficiency in shaft connections. Ideal for industrial applications requiring reliable performance and durability.
Product Specifications
Dimensional Attributes Bore Size A
1 in
Dimensional Attributes Bore Size B
1 in
Dimensional Attributes Keyway A
1/4 in
Dimensional Attributes Keyway B
1/4 in
Dimensional Attributes Outside Diameter
2.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.000 in
Specifications Alloy
1215
Specifications Approximate Weight
1.82 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
108.76 USD
Specifications Material
Steel
Specifications Part Number
5L100100KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018756
