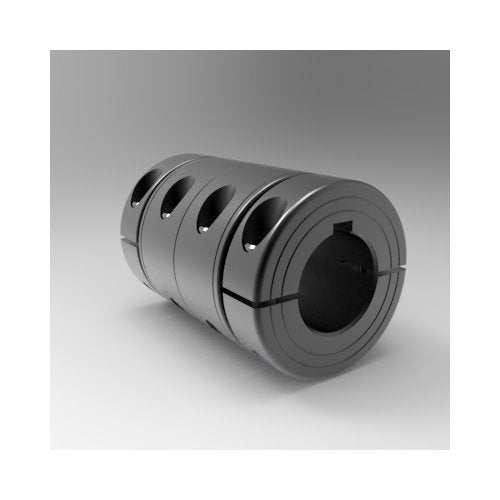

Accu-Clamp Precision Sleeve Coupling with Keyways
Accu-Clamp Precision Sleeve Coupling with Keyways
SKU:ROU-fd6f5b
Accu-Clamp Precision Sleeve Coupling with Keyways, precise shaft alignment, two-piece steel design, keyways included, high clamping power, RoHS2 and REACH compliant.
Regular price
$118.49
Regular price
Sale price
$118.49
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Coupling with Keyways
$118.49
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Coupling with Keyways
$118.49
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Clamp Precision Sleeve Coupling with Keyways from the Signature series is designed to ensure precise shaft alignment with axial runout less than .001 TIR. This two-piece steel coupling features a solid center section for a close tolerance fit on ground shafting, incorporating integral self-centering clamping collars at both ends. With keyways included, this coupling allows for convenient assembly and adjustment, making it easy to adjust with high clamping power. The black oxide finish enhances durability while protecting shafts from damage. Stocked in the USA, this coupling is RoHS2 and REACH compliant, making it a reliable choice for various applications.
Product Specifications
Dimensional Attributes Bore Size A
3/4 in
Dimensional Attributes Bore Size B
3/4 in
Dimensional Attributes Keyway A
3/16 in
Dimensional Attributes Keyway B
3/16 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
2.625 in
Specifications Alloy
1215
Specifications Approximate Weight
1.29 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
118.49 USD
Specifications Material
Steel
Specifications Part Number
5L012012FKPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018800
