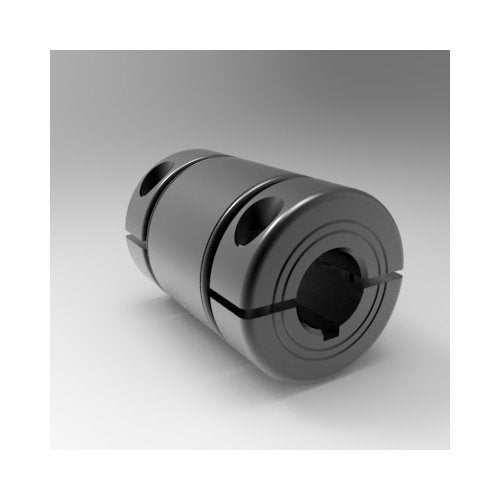

Accu-Clamp Precision Sleeve Coupling with Keyways
Accu-Clamp Precision Sleeve Coupling with Keyways
SKU:ROU-07676e
Achieve precise shaft alignment with our high-strength steel Accu-Clamp Precision Sleeve Coupling. Zero backlash, keyway included.
Regular price
$101.54
Regular price
Sale price
$101.54
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Coupling with Keyways
$101.54
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Coupling with Keyways
$101.54
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance shaft alignment with our Accu-Clamp Precision Sleeve Coupling. This one-piece split coupling features a solid center section for a close tolerance fit on ground shafting, zero backlash mating of shafts, and integral self-centering clamping collars for precise alignment. Made of high-strength black oxide-finished steel, it includes standard keyways and is designed with a balanced screw head configuration. Achieve axial runout less than .001 TIR, protecting shafts with a smooth bore design.
Product Specifications
Dimensional Attributes Bore Size A
3/4 in
Dimensional Attributes Bore Size B
3/4 in
Dimensional Attributes Keyway A
3/16 in
Dimensional Attributes Keyway B
3/16 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
2.625 in
Specifications Alloy
1215
Specifications Approximate Weight
1.32 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
101.54 USD
Specifications Material
Steel
Specifications Part Number
5L012012KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018749
