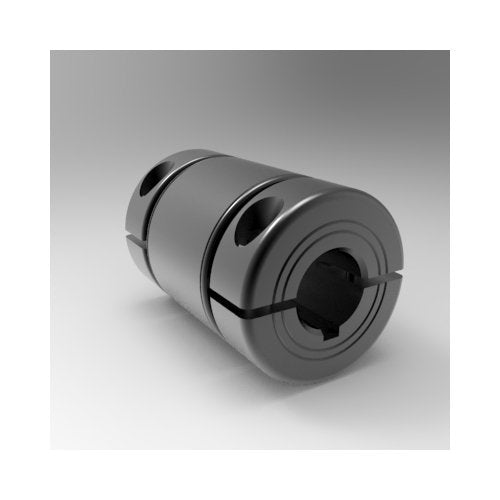

Accu-Clamp Precision Sleeve Coupling with Keyways
Accu-Clamp Precision Sleeve Coupling with Keyways
SKU:ROU-e12a8b
Precision Sleeve Coupling for shaft alignment with zero backlash & high-strength steel construction. RoHS2 & REACH compliant.
Regular price
$88.84
Regular price
Sale price
$88.84
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Coupling with Keyways
$88.84
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Coupling with Keyways
$88.84
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Clamp Precision Sleeve Coupling with Keyways from Stafford is an essential component for precise shaft alignment. Featuring a balanced design with screw heads in opposing directions, this one-piece split coupling ensures axial runout less than .001 TIR. Mate two shafts with zero backlash using the standard keyways and smooth bore that protects shafts from damage. Stafford's Precision Sleeve Coupling includes integral self-centering clamping collars at both ends for easy installation, providing a close tolerance fit on ground shafting. Made of high-strength steel with a black oxide finish, this coupling is RoHS2 and REACH compliant, ensuring quality and durability.
Product Specifications
Dimensional Attributes Bore Size A
1/2 in
Dimensional Attributes Bore Size B
1/2 in
Dimensional Attributes Keyway A
1/8 in
Dimensional Attributes Keyway B
1/8 in
Dimensional Attributes Outside Diameter
1.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Total Length
1.875 in
Specifications Alloy
1215
Specifications Approximate Weight
0.48 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
88.84 USD
Specifications Material
Steel
Specifications Part Number
5L008008KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018725
