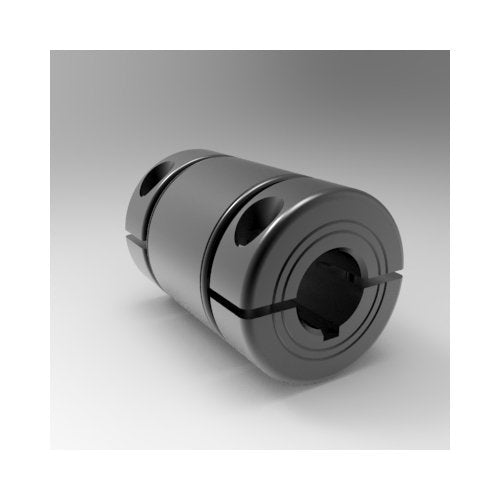

Accu-Clamp Precision Sleeve Couplings with Keyways
Accu-Clamp Precision Sleeve Couplings with Keyways
SKU:ROU-d5fde6
Achieve unparalleled shaft alignment precision with our Accu-Clamp Precision Sleeve Couplings; zero backlash guaranteed. RoHS2 and REACH compliant.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Couplings with Keyways
$79.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Couplings with Keyways
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your shaft alignment precision with our Accu-Clamp Precision Sleeve Couplings featuring a balanced design for optimal performance. This one-piece split coupling ensures axial runout less than .001 TIR, guaranteeing zero backlash between shafts. The solid center section offers a close tolerance fit on ground shafting, complete with keyways for enhanced stability. Stafford's exclusive design boasts integral self-centering clamping collars at both ends, ensuring a secure and precise connection. Made of high-strength steel with a black oxide finish, this coupling is RoHS2 and REACH compliant, meeting stringent industry standards.
Product Specifications
Dimensional Attributes Bore Size A
1-1/4 in
Dimensional Attributes Bore Size B
1-1/4 in
Dimensional Attributes Keyway A
1/4 in
Dimensional Attributes Keyway B
1/4 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.375 in
Specifications Alloy
1215
Specifications Approximate Weight
2.43 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
5L104104KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018763
