Accu-Clamp Precision Sleeve Couplings with Keyways
Accu-Clamp Precision Sleeve Couplings with Keyways
SKU:ROU-8e7ba3
Enhance shaft alignment with Accu-Clamp Precision Sleeve Couplings. Solid construction, zero backlash, and keyways for high-strength applications.
Regular price
$158.86
Regular price
Sale price
$158.86
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Couplings with Keyways
$158.86
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Couplings with Keyways
$158.86
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

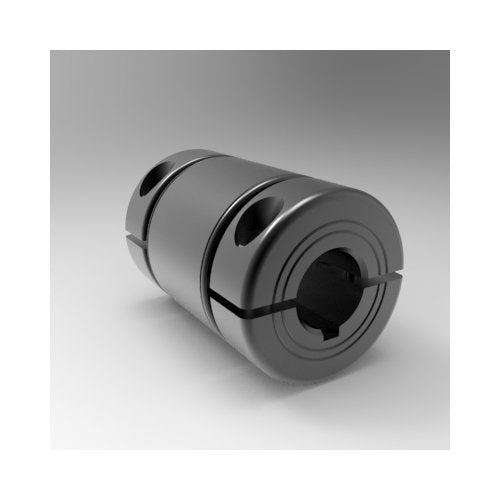

Upgrade your shaft coupling system with the Accu-Clamp Precision Sleeve Couplings, featuring a solid center section for precise shaft alignment, axial runout less than .001 TIR, and zero backlash to mate two shafts seamlessly. This one-piece split coupling incorporates a keyway, steel construction, and a balanced design with screw heads in opposing directions. Designed for high strength applications, it includes integral self-centering clamping collars for added stability while protecting shafts from damage.
Product Specifications
Dimensional Attributes Bore Size A
1-1/2 in
Dimensional Attributes Bore Size B
1-1/2 in
Dimensional Attributes Keyway A
3/8 in
Dimensional Attributes Keyway B
3/8 in
Dimensional Attributes Outside Diameter
2.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.750 in
Specifications Alloy
1215
Specifications Approximate Weight
3.07 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
158.86 USD
Specifications Material
Steel
Specifications Part Number
5L108108KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018770
