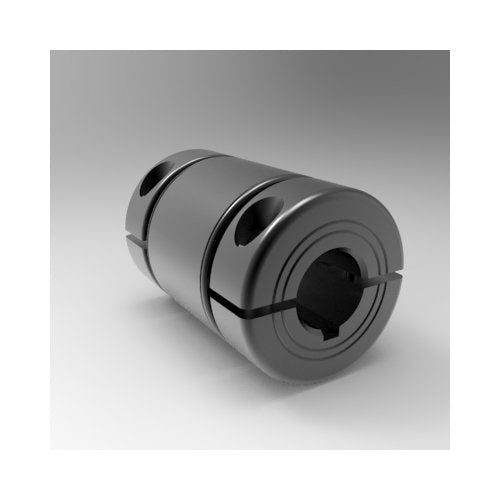

Accu-Clamp Precision Sleeve Couplings with Keyways
Accu-Clamp Precision Sleeve Couplings with Keyways
SKU:ROU-0cea5f
Achieve precise shaft alignment with Accu-Clamp Precision Sleeve Couplings. Zero backlash, tight fit, USA-made. RoHS2 & REACH compliant.
Regular price
$107.63
Regular price
Sale price
$107.63
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Couplings with Keyways
$107.63
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Couplings with Keyways
$107.63
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance precision shaft alignment with the Accu-Clamp Precision Sleeve Couplings featuring a balanced design with screw heads in opposing directions. This one-piece split coupling includes standard keyways, zero backlash mating, and Stafford's exclusive self-centering clamping collars. With axial runout less than .001 TIR and a smooth bore to protect shafts, this steel coupling ensures a close tolerance fit. Suitable for institutional and government settings, this high-strength coupling is RoHS2 and REACH compliant, made in the USA.
Product Specifications
Dimensional Attributes Bore Size A
5/8 in
Dimensional Attributes Bore Size B
5/8 in
Dimensional Attributes Keyway A
3/16 in
Dimensional Attributes Keyway B
3/16 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
1215
Specifications Approximate Weight
0.83 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
107.63 USD
Specifications Material
Steel
Specifications Part Number
5L010010KPSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786018732
