Accu-Clamp Precision Sleeve Hex Bore Couplings
Accu-Clamp Precision Sleeve Hex Bore Couplings
SKU:ROU-8e20d8
Achieve precise shaft alignment with Stafford's Accu-Clamp Precision Sleeve Hex Bore Couplings. Solid construction, easy assembly, and high clamping power.
Regular price
$68.47
Regular price
Sale price
$68.47
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Hex Bore Couplings
$68.47
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Hex Bore Couplings
$68.47
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

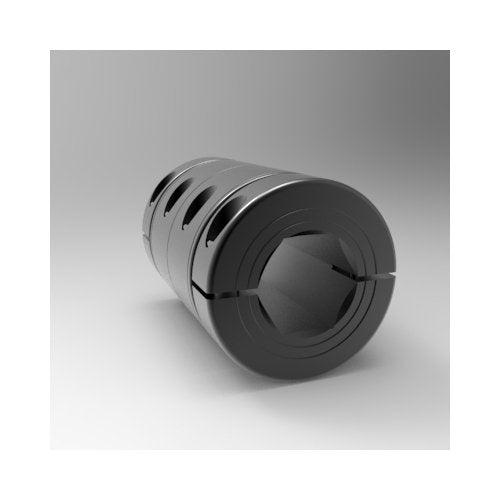

The Accu-Clamp Precision Sleeve Hex Bore Couplings by Stafford are expertly designed for precise shaft alignment, with an axial runout less than .001" TIR. These two-piece couplings feature a solid center section for close tolerance fit on ground shafting and Stafford's exclusive Accu-Clamp design for integral self-centering clamping collars. The precision machined steel construction ensures durability, while the smooth bore protects shafts from damage. Convenient assembly and adjustment make this coupling a must-have for applications requiring high clamping power and non-marring properties.
Product Specifications
Dimensional Attributes Bore Size A
9/16 in
Dimensional Attributes Bore Size B
9/16 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
1215
Specifications Approximate Weight
0.78 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
68.47 USD
Specifications Material
Steel
Specifications Part Number
13L009009PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039539
