Accu-Clamp Precision Sleeve Hex Bore Couplings
Accu-Clamp Precision Sleeve Hex Bore Couplings
SKU:ROU-e757b4
Enhanced Accu-Clamp Precision Sleeve Couplings for precise and convenient shaft alignment on hexagonal shafts. Easy assembly and adjustment with high clamping power.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Hex Bore Couplings
$49.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Hex Bore Couplings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

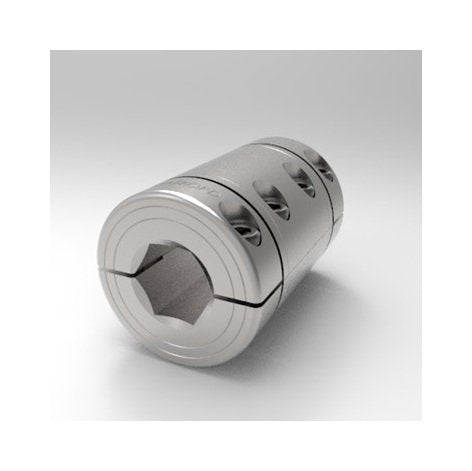

The Accu-Clamp Precision Sleeve Hex Bore Couplings have been upgraded to a balanced design with screw heads in opposing directions for enhanced durability and alignment precision. These couplings are designed for hexagonal shafts to ensure precise shaft alignment with an axial runout less than .001" TIR. Featuring a convenient two-piece split design, assembly and adjustment have never been easier. The precision machined solid center section provides a close tolerance fit on ground shafting, while the Accu-Clamp design incorporates integral self-centering clamping collars at both ends. Protecting shafts from damage, these couplings are available in Steel, Stainless Steel, and Aluminum options.
Product Specifications
Dimensional Attributes Bore Size A
7/8 in
Dimensional Attributes Bore Size B
7/8 in
Dimensional Attributes Outside Diameter
2.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.000 in
Specifications Alloy
2024
Specifications Approximate Weight
0.72 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
13A014014PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039799
