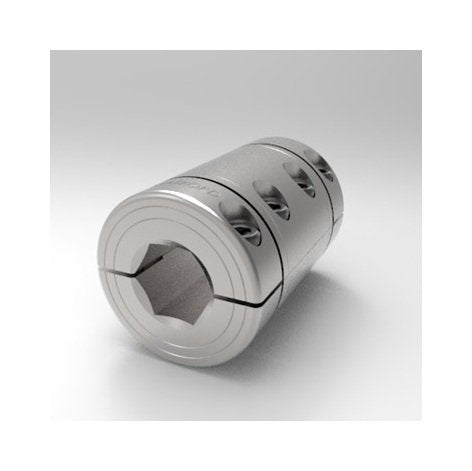

The Accu-Clamp Precision Sleeve Hex Bore Couplings from Stafford Manufacturing offer unmatched precision and convenience for hexagonal shaft applications. This two-piece design ensures precise shaft alignment with axial runout less than .001" TIR. The exclusive Precision Sleeve Coupling features a solid center section for a close tolerance fit and integral self-centering clamping collars, making assembly and adjustment a breeze. Available in steel, stainless steel, and aluminum, this non-marring coupling provides high clamping power while safeguarding shafts from damage.
Product Specifications
Dimensional Attributes Bore Size A
1/2 in
Dimensional Attributes Bore Size B
1/2 in
Dimensional Attributes Outside Diameter
1.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
8-32 x 1/2
Dimensional Attributes Total Length
1.875 in
Specifications Alloy
2024
Specifications Approximate Weight
0.24 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
13A008008PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039744
