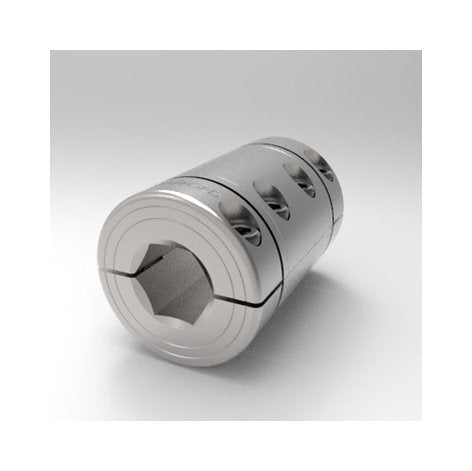

Accu-Clamp Precision Sleeve Hex Bore Couplings
Accu-Clamp Precision Sleeve Hex Bore Couplings
SKU:ROU-67e20f
Achieve precise shaft alignment with Accu-Clamp Hex Bore Couplings for ultimate accuracy and convenience.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Hex Bore Couplings
$45.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Hex Bore Couplings
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance shaft alignment with precision using our Accu-Clamp Precision Sleeve Hex Bore Couplings. Featuring a balanced design with screw heads in opposing directions, these two-piece couplings have axial runout less than .001" TIR for ultimate accuracy. The solid center section ensures a close tolerance fit on ground shafting, while the self-centering clamping collars at both ends offer convenient assembly and adjustment. Crafted from high-quality Aluminum Alloy 2024, this coupling is precision machined, non-marring, and high clamping power for reliable performance. Available in multiple materials for diverse applications.
Product Specifications
Dimensional Attributes Bore Size A
5/8 in
Dimensional Attributes Bore Size B
5/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
2024
Specifications Approximate Weight
0.26 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
13A010010PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039768
