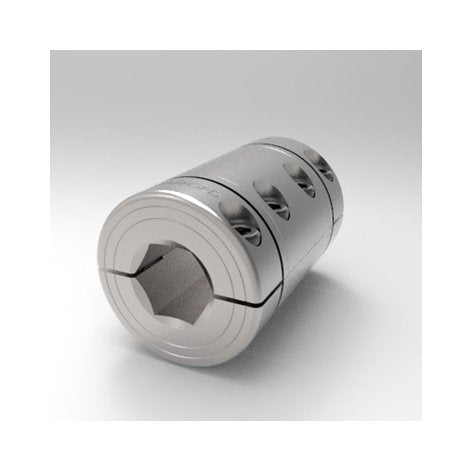

Accu-Clamp Precision Sleeve Hex Bore Couplings
Accu-Clamp Precision Sleeve Hex Bore Couplings
SKU:ROU-20fc32
Accu-Clamp Precision Couplings: Balanced design for precise shaft alignment, convenient split construction in steel, stainless steel, and aluminum options.
Regular price
$106.08
Regular price
Sale price
$106.08
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Hex Bore Couplings
$106.08
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Hex Bore Couplings
$106.08
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Clamp Precision Sleeve Hex Bore Couplings have been enhanced with a balanced design featuring screw heads in opposing directions for improved performance. Designed for use on hexagonal shafts, these couplings ensure precise shaft alignment with axial runout less than .001" TIR. The two-piece split construction allows for convenient assembly and adjustment, while the smooth bore protects shafts from damage. Stafford's exclusive precision sleeve design with self-centering clamping collars provides a close tolerance fit, making it easy to adjust and offering high clamping power. Available in steel, stainless steel, and aluminum.
Product Specifications
Dimensional Attributes Bore Size A
3/4 in
Dimensional Attributes Bore Size B
3/4 in
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
2.875 in
Specifications Alloy
2024
Specifications Approximate Weight
0.56 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
106.08 USD
Specifications Material
Aluminum
Specifications Part Number
13A012012PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039782
