Accu-Clamp Precision Sleeve Hex Bore Couplings
Accu-Clamp Precision Sleeve Hex Bore Couplings
SKU:ROU-8d98f7
Achieve precise shaft alignment with our Accu-Clamp Precision Sleeve Couplings for hexagonal shafts. High clamping power, easy assembly, and protective smooth bore design.
Regular price
$109.55
Regular price
Sale price
$109.55
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Hex Bore Couplings
$109.55
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Hex Bore Couplings
$109.55
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

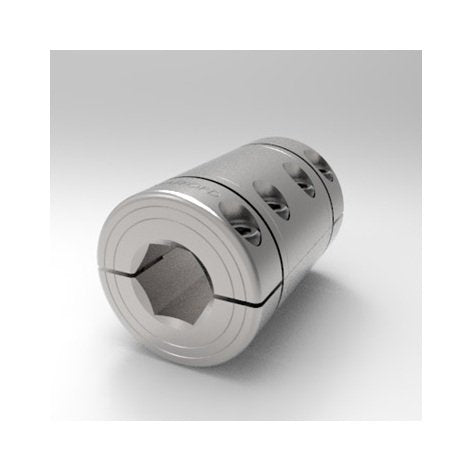

The Accu-Clamp Precision Sleeve Hex Bore Couplings feature a balanced design with screw heads in opposing directions for precise shaft alignment on hexagonal shafts. With an axial runout less than .001" TIR, this two-piece coupling allows convenient assembly and adjustment, protecting shafts with its smooth bore. Stafford's exclusive Solid Center Section provides a close tolerance fit on ground shafting, while the integral self-centering clamping collars at both ends ensure high clamping power. Available in Steel, Stainless Steel, and Aluminum, this precision machined coupling is non-marring, easy to adjust, and reliable for various applications.
Product Specifications
Dimensional Attributes Bore Size A
9/16 in
Dimensional Attributes Bore Size B
9/16 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
2024
Specifications Approximate Weight
0.2 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
109.55 USD
Specifications Material
Aluminum
Specifications Part Number
13A009009PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Screw Material
Alloy Steel
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786039751
