Accu-Clamp Precision Sleeve Square Bore Couplings
Accu-Clamp Precision Sleeve Square Bore Couplings
SKU:ROU-b5a4af
Achieve precise shaft alignment with Accu-Clamp Precision Sleeve Couplings, balancing convenience and high clamping power for optimal performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Square Bore Couplings
$49.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Square Bore Couplings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

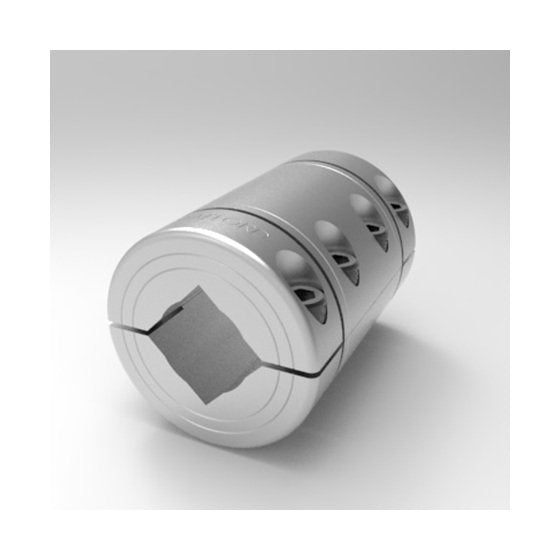

The Accu-Clamp Precision Sleeve Square Bore Couplings feature a balanced design with opposing screw heads, ensuring precise shaft alignment with axial runout less than .001' TIR. This exclusive coupling by Stafford provides convenient assembly and adjustment, protecting shafts from damage. With high clamping power and smooth bores, it accommodates square shafts effectively. Available in steel, stainless steel, and aluminum variants, this coupling is designed for optimal performance and durability.
Product Specifications
Dimensional Attributes Bore Size A
9/16 in
Dimensional Attributes Bore Size B
9/16 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
2.625 in
Specifications Alloy
2024
Specifications Approximate Weight
0.46 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
15A009009PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040528
