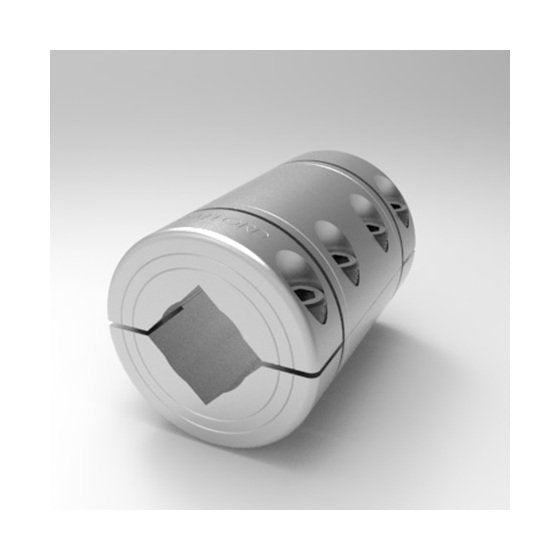

Accu-Clamp Precision Sleeve Square Bore Couplings
Accu-Clamp Precision Sleeve Square Bore Couplings
SKU:ROU-6c4208
Achieve precision shaft alignment with Accu-Clamp Square Bore Couplings. Easy assembly & adjustment. Non-marring, high clamping power. Made in USA.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Accu-Clamp Precision Sleeve Square Bore Couplings
$39.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Sleeve Square Bore Couplings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precise shaft alignment with the Accu-Clamp Precision Sleeve Square Bore Couplings. Designed for square shafts, these two-piece couplings assure axial runout less than .001" TIR. With a solid center section for close tolerance fits and integral self-centering clamping collars, they are easy to assemble and adjust. Made of Aluminum Alloy 2024 in the USA, these couplings feature non-marring, high clamping power capabilities.
Product Specifications
Dimensional Attributes Bore Size A
3/8 in
Dimensional Attributes Bore Size B
3/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
2024
Specifications Approximate Weight
0.28 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
15A006006PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040498
