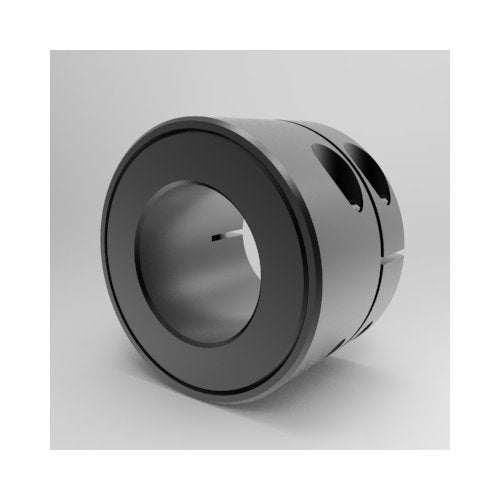

Accu-Clamp Precision Split Collar

Name: Accu-Clamp Precision Split Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-209e25
Price: 15.99 USD
Availability: OutOfStock

SKU:ROU-209e25

Enhance shaft assembly stability with the Accu-Clamp Precision Split Collar. Features machineable or hardened options in 1117 steel for precise applications.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your shaft assembly with the Accu-Clamp Precision Split Collar, featuring a new balanced design with opposing screw heads for enhanced stability. Crafted from 1117 steel, this collar offers a non-marring clamp with a solid, machineable or hardened and ground face. Easily disassembled and repositioned on shafts, it provides a high-strength, customizable solution for precise applications. The machineable option allows for further modifications like threading or turning, while the hardened and ground version ensures extreme squareness and flatness. Contact us for questions or orders during this design transition.

Product Specifications

Dimensional Attributes Bore Size

1/2 in

Dimensional Attributes Outside Diameter

1.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

8-32 x 1/2

Dimensional Attributes Width

1.125 in

Specifications Alloy

1117

Specifications Approximate Weight

0.19 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2L008ACM

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Machineable

Specifications Upc Code

662786027284
