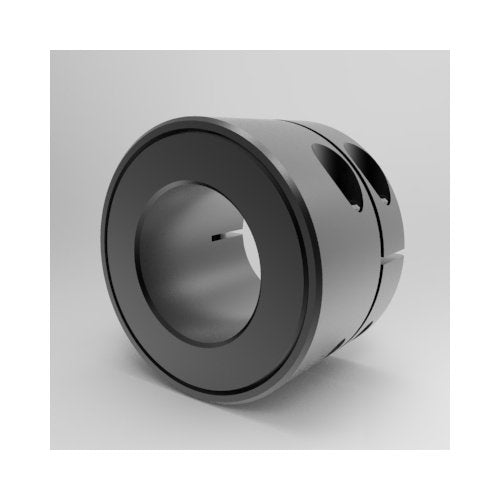

Accu-Clamp Precision Split Collar Two-Piece Type
Accu-Clamp Precision Split Collar Two-Piece Type
SKU:ROU-be1dbb
Accu-Clamp Precision Split Collar with balanced design, high-strength hold, and machineable or hardened options for shaft assembly.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Accu-Clamp Precision Split Collar Two-Piece Type
$24.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp Precision Split Collar Two-Piece Type
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Clamp Precision Split Collar Two-Piece Type features a balanced design with screw heads in opposing directions, ensuring optimal performance in various applications. Made from 1117 Steel, these collars provide a high-strength, non-marring hold with a solid working face that is machineable or hardened and ground. Their integral clamp allows for easy disassembly and placement anywhere on a shaft. Whether you need a collar that offers customization options or one with ultra-precise bearing surfaces, the Accu-Clamp Precision Split Collar delivers versatility and reliability for your shaft assembly needs.
Product Specifications
Dimensional Attributes Bore Size
1-1/8 in
Dimensional Attributes Outside Diameter
2.125 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Width
1.500 in
Specifications Alloy
1117
Specifications Approximate Weight
0.64 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2L102ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Machineable
Specifications Upc Code
662786027338
