Accu-Clamp Threaded Shaft Collar

Name: Accu-Clamp Threaded Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-1f8456
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-1f8456

Versatile Accu-Clamp Threaded Shaft Collar for secure mounting on standard UNF threaded shafts, high-strength steel construction, balanced design, and customizable face.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

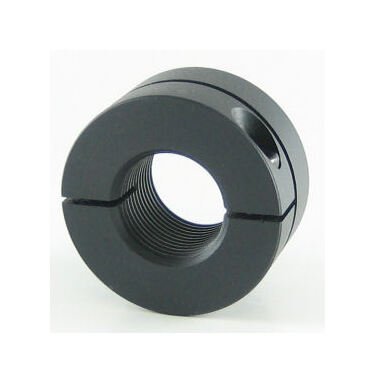

The Accu-Clamp Threaded Shaft Collar is a versatile solution for securely mounting components on standard UNF threaded shafts. Constructed from high-strength 1117 Steel with a black oxide finish, this one-piece split collar features a unique balanced design with screw heads in opposing directions for enhanced stability. The integral clamp provides a non-marring grip, while the fully machineable face allows for customization through drilling, tapping, and other modifications. With precise dimensional attributes including a 7/8-14 threaded bore size and an outside diameter of 1.875 inches, this Accu-Clamp collar combines durability and flexibility, meeting RoHS2 and REACH compliance standards.

Product Specifications

Dimensional Attributes Outside Diameter

1.875 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Threaded Bore Size

7/8-14

Dimensional Attributes Width

1.000 in

Specifications Alloy

1117

Specifications Approximate Weight

0.54 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

3L014ACM

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

High Strength

Specifications Upc Code

662786027420

Accu-Clamp Threaded Shaft Collar
