Accu-Clamp Threaded Shaft Collar, One-Piece Type - 1-14 Threaded Bore

Name: Accu-Clamp Threaded Shaft Collar, One-Piece Type - 1-14 Threaded Bore
Brand: Stafford Manufacturing Corp.
SKU: ROU-9b1db9
Price: 38.99 USD
Availability: OutOfStock

SKU:ROU-9b1db9

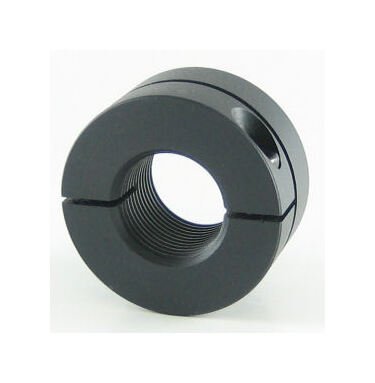

Accu-Clamp Threaded Shaft Collar: High-strength steel collar with non-marring clamp for precise mounting on standard threaded shafts.

$38.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Accu-Clamp Threaded Shaft Collar is designed for precision mounting on standard UNF threaded shafts. Made from high-strength 1117 Steel with a black oxide finish, this collar features a non-marring clamp and a fully machineable face for versatile customization. With an integral clamp, recessed screws, and optimal dimensions, it offers a square and rigid mounting solution suitable for various applications in industrial settings. Contact us for tailored solutions to meet your specific requirements.

Product Specifications

Dimensional Attributes Outside Diameter

2.000 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Threaded Bore Size

1-14

Dimensional Attributes Width

1.000 in

Specifications Alloy

1117

Specifications Approximate Weight

0.59 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

3L100ACM

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

High Strength

Specifications Upc Code

662786027437

Accu-Clamp Threaded Shaft Collar, One-Piece Type - 1-14 Threaded Bore
