Accu-Clamp Threaded Shaft Collars

Name: Accu-Clamp Threaded Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: ROU-ed0c94
Price: 28.99 USD
Availability: OutOfStock

SKU:ROU-ed0c94

Achieve a sturdy and versatile component mounting solution with the Accu-Clamp Threaded Shaft Collars Two-Piece Type, crafted from 1117 Steel with integral clamp and fully machineable face. RoHS2 and REACH compliant.

$28.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

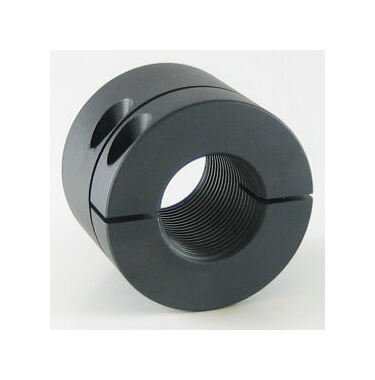

The Accu-Clamp Threaded Shaft Collars Two-Piece Type offers a balanced design with screw heads in opposing directions, providing a square and rigid method for mounting components on threaded shafts. Constructed from high-strength 1117 Steel, this collar features a fully machineable face on one side for drilling, tapping, and more. The integral clamp ensures a secure, non-marring hold, and its 2-piece design allows for versatile placement on a shaft. With dimensions of 1.750" outside diameter and 1.500" width, this collar is threaded (3/4-16) and comes with a recessed screw (1/4-28 x 3/4) made of alloy steel. RoHS2 and REACH compliant.

Product Specifications

Dimensional Attributes Outside Diameter

1.750 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Threaded Bore Size

3/4-16

Dimensional Attributes Width

1.500 in

Specifications Alloy

1117

Specifications Approximate Weight

0.49 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

3L012FACM

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

High Strength

Specifications Upc Code

662786027468

Accu-Clamp Threaded Shaft Collars
