Accu-Clamp Threaded Shaft Collars Split Two-Piece Type

Name: Accu-Clamp Threaded Shaft Collars Split Two-Piece Type
Brand: Stafford Manufacturing Corp.
SKU: ROU-7643d6
Price: 15.99 USD
Availability: OutOfStock

SKU:ROU-7643d6

Accu-Clamp Split Two-Piece Shaft Collar - High-strength, non-marring mounting solution for threaded shafts. Fully machineable face for customizations.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

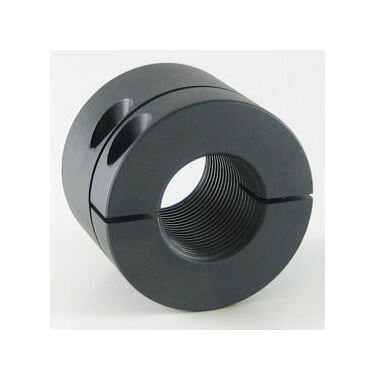

The Accu-Clamp Threaded Shaft Collars Split Two-Piece Type offers a balanced design with screw heads in opposing directions, providing a square and rigid method for mounting components on threaded shafts. Made of 1117 Steel, it features a fully machineable face for drilling and tapping. The integral clamp ensures a high-strength, non-marring hold. This 2-piece design allows for flexibility in placement and customization options like drilling, tapping, threading, and more.

Product Specifications

Dimensional Attributes Outside Diameter

1.875 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 3/4

Dimensional Attributes Threaded Bore Size

7/8-14

Dimensional Attributes Width

1.500 in

Specifications Alloy

1117

Specifications Approximate Weight

0.54 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

3L014FACM

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

High Strength

Specifications Upc Code

662786027475
