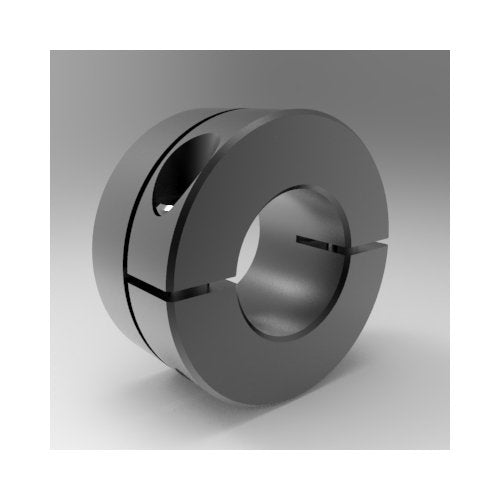

Accu-Clamp⢠Collars - Precision One-Piece Split Design
Accu-Clamp⢠Collars - Precision One-Piece Split Design
SKU:ROU-65c649
Enhanced Accu-Clamp⢠Collars with balanced design, solid working face, and high-strength clamp. Stocked in 1117 Steel, offering machineable or hardened/ground options.
Regular price
$58.40
Regular price
Sale price
$58.40
Unit price
per
Initiate Order
Accu-Clamp⢠Collars - Precision One-Piece Split Design
$58.40
Quantity: 1
Claim Your Seller Account
Accu-Clamp⢠Collars - Precision One-Piece Split Design
$58.40
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Introducing the new Accu-Clamp⢠Collars featuring a balanced design with screw heads in opposing directions for enhanced performance and usability. These collars offer a solid working face that is either machineable or hardened and ground, providing high strength and a non-marring hold. Whether you need versatility for modifications or ultra-precision for critical applications, our Accu-Clamp⢠Collars deliver. Stocked in 1117 Steel, with two styles available: machineable for user modifications and hardened/ground for extreme squareness and flatness.
Product Specifications
Dimensional Attributes Bore Size
1-1/4 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Width
1.000 in
Specifications Alloy
1117
Specifications Approximate Weight
0.69 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
58.4 USD
Specifications Material
Steel
Specifications Part Number
1L104ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Machineable
Specifications Upc Code
662786027123
