Accu-Clamp⢠Precision Shaft Collar, Two-Piece Split Type
Accu-Clamp⢠Precision Shaft Collar, Two-Piece Split Type
SKU:ROU-b4c8ca
Premium Accu-Clamp⢠Collar for high-precision shaft positioning and hold. Crafted from 1117 Steel with non-marring clamp and machineable or hardened face.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Accu-Clamp⢠Precision Shaft Collar, Two-Piece Split Type
$24.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp⢠Precision Shaft Collar, Two-Piece Split Type
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

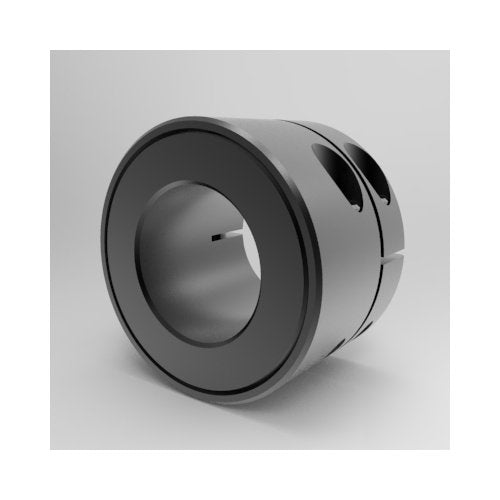

The Accu-Clamp⢠Precision Shaft Collar is meticulously designed with a balanced two-piece split construction featuring opposing screw heads. Crafted from 1117 Steel, this collar offers a non-marring clamp with a machineable or hardened and ground solid working face. It provides exceptional strength, versatility, and precision, allowing for disassembly and placement anywhere on a shaft. Ideal for applications requiring extreme squareness and flatness.
Product Specifications
Dimensional Attributes Bore Size
1-3/8 in
Dimensional Attributes Outside Diameter
2.375 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Width
1.500 in
Specifications Alloy
1117
Specifications Approximate Weight
0.74 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2L106ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Machineable
Specifications Upc Code
662786027352
