Accu-Clamp⢠Split Collars - Two-Piece Precision Shaft Collar
Accu-Clamp⢠Split Collars - Two-Piece Precision Shaft Collar
SKU:ROU-f043ac
Enhanced precision with a non-marring design. Easily customized for versatile applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Accu-Clamp⢠Split Collars - Two-Piece Precision Shaft Collar
$29.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp⢠Split Collars - Two-Piece Precision Shaft Collar
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

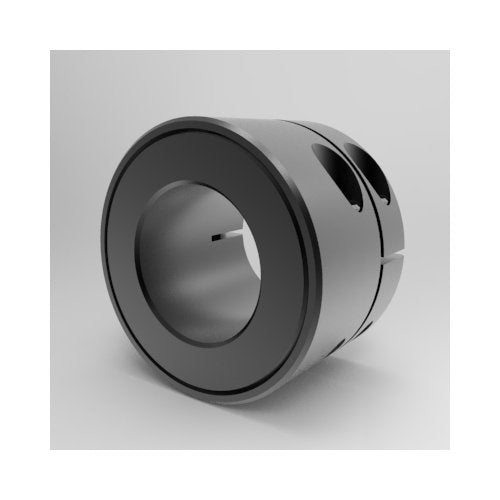

Experience enhanced precision with our Two-Piece Split Accu-Clamp⢠Collar. Featuring a balanced design with opposing screw heads for optimal strength and versatility, these collars provide a non-marring, solid working face that can be machined or hardened and ground. Easily disassembled and positioned anywhere on a shaft, these collars offer exceptional customization options. Choose between the machineable version for user modifications or the hardened and ground option for ultra-precise applications requiring extreme squareness and flatness.
Product Specifications
Dimensional Attributes Bore Size
5/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
10-32 x 5/8
Dimensional Attributes Width
1.188 in
Specifications Alloy
1117
Specifications Approximate Weight
0.29 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2L010ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Machineable
Specifications Upc Code
662786027291
