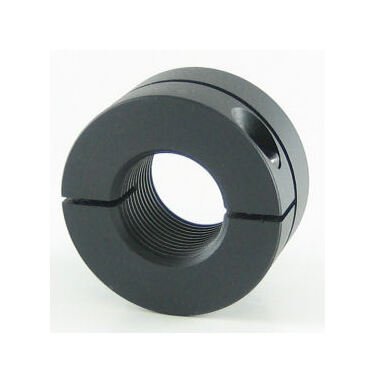

Accu-Clamp⢠Threaded Shaft Collars
Accu-Clamp⢠Threaded Shaft Collars
SKU:ROU-93ee08
Secure, rigid mounting for components on threaded shafts. High-strength steel, machineable face, non-marring hold. RoHS2 and REACH compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Accu-Clamp⢠Threaded Shaft Collars
$24.99
Quantity: 1
Claim Your Seller Account
Accu-Clamp⢠Threaded Shaft Collars
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Clamp⢠Threaded Shaft Collars One-Piece Type offers a balanced design with screw heads in opposing directions, ensuring a secure and rigid method for mounting components on threaded shafts. Made from high-strength 1117 Steel, it features a fully machineable face for versatile customization options like drilling and tapping. The integral clamp provides a non-marring hold, and the collar is stocked in a black oxide finish. With dimensions suited for a 3/4-16 threaded bore size, 1.750-inch outside diameter, and 1.000-inch width, this collar meets RoHS2 and REACH compliance standards, making it a reliable choice for various applications.
Product Specifications
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Threaded Bore Size
3/4-16
Dimensional Attributes Width
1.000 in
Specifications Alloy
1117
Specifications Approximate Weight
0.49 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
3L012ACM
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
High Strength
Specifications Upc Code
662786027413
