Accu-Flange™ Flange Adapter Rings
Accu-Flange™ Flange Adapter Rings
SKU:ROU-7bad79
Enhance your equipment with precision-engineered Accu-Flange™ Flange Adapter Rings for versatile mounting options and custom fits.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Accu-Flange™ Flange Adapter Rings
$29.99
Quantity: 1
Claim Your Seller Account
Accu-Flange™ Flange Adapter Rings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

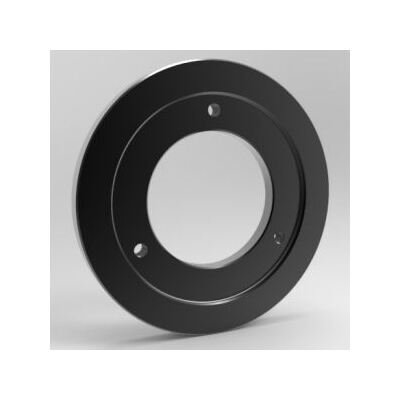

The Accu-Flange™ Flange Adapter Rings are precision-engineered to extend the outer diameter of Accu-Flange™ Collars and Precision Sleeve Flange Couplings, offering three adapter holes for versatile mounting options. Users can customize the part to any bolt pattern, ensuring a perfect fit for their application. Available in three outer diameter options for each bore size, these weldable adapter rings are compatible with materials including 1018 Steel, Stainless Steel, and Aluminum. Enhance your equipment with these durable and adaptable rings, designed to meet the highest industry standards.
Product Specifications
Dimensional Attributes Accu Flange Collar Bore Size
3/4 in
Dimensional Attributes Inside Diameter
1.877 in
Dimensional Attributes Mounting Hole
1/4-20
Dimensional Attributes Outside Diameter
5.000 in
Dimensional Attributes Width
0.375 in
Specifications Alloy
1018
Specifications Approximate Weight
1.50 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
FRL0123755000
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786031595
