Accu-Flange Adapter Rings
Accu-Flange Adapter Rings
SKU:ROU-80b4ad
Precision-engineered Accu-Flange Adapter Rings for extending collar and coupling flange OD. Weldable, with customizable bolt patterns. Available in multiple materials.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Accu-Flange Adapter Rings
$49.99
Quantity: 1
Claim Your Seller Account
Accu-Flange Adapter Rings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

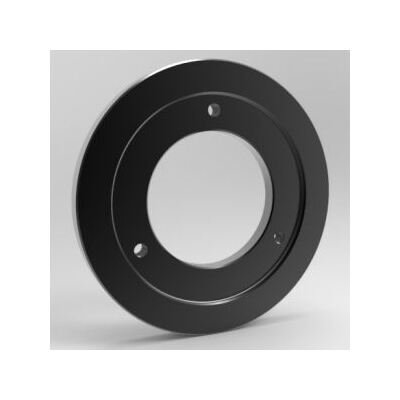

The Accu-Flange Adapter Rings are precision-engineered accessories specifically designed to extend the outer diameter of Accu-Flange™ Collars and Precision Sleeve Flange Couplings. Featuring three adapter holes for flexible mounting options, these weldable rings offer users the ability to customize bolt patterns to perfectly align with their applications. Available in 1018 Steel, Stainless Steel, and Aluminum options, these rings ensure dependable and durable performance for a wide range of industrial needs.
Product Specifications
Dimensional Attributes Accu Flange Collar Bore Size
1-1/2 in
Dimensional Attributes Inside Diameter
2.627 in
Dimensional Attributes Mounting Hole
1/4-20
Dimensional Attributes Outside Diameter
6.750 in
Dimensional Attributes Width
0.375 in
Specifications Alloy
1018
Specifications Approximate Weight
2.54 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
FRL1083756750
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786031694
