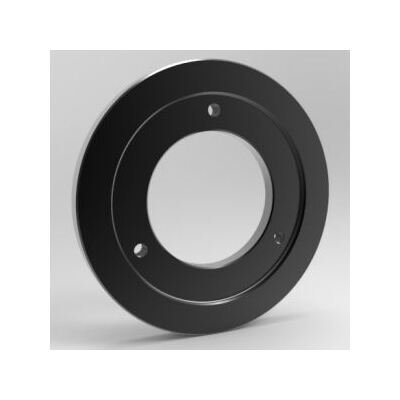

Accu-Flange Extension Rings
Accu-Flange Extension Rings
SKU:ROU-939fb0
Enhance equipment performance with Accu-Flange Extension Rings, designed to extend OD seamlessly for a perfect fit. Increase adaptability and functionality with precision-manufactured rings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Accu-Flange Extension Rings
$24.99
Quantity: 1
Claim Your Seller Account
Accu-Flange Extension Rings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accu-Flange Extension Rings are precision-engineered to extend the outer diameter of Accu-Flange™ Collars and Precision Sleeve Flange Couplings seamlessly. Featuring three adapter holes for secure mounting and weldable options, these rings offer versatility for various applications. With three OD options for each bore size and the ability for custom machining to suit specific bolt patterns, these extension rings elevate your equipment's functionality. Available in 1018 Steel, Stainless Steel, and Aluminum options, these rings ensure durability and reliability.
Product Specifications
Dimensional Attributes Accu Flange Collar Bore Size
1/2 in
Dimensional Attributes Inside Diameter
1.377 in
Dimensional Attributes Mounting Hole
8-32
Dimensional Attributes Outside Diameter
4.250 in
Dimensional Attributes Width
0.375 in
Specifications Alloy
1018
Specifications Approximate Weight
1.16 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
FRL0083754250
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786031533
