Accu-Flange Extension Rings
Accu-Flange Extension Rings
SKU:ROU-a452c0
Precision-engineered Accu-Flange Extension Rings for secure OD extension of collars and couplings, offering versatile mounting options.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Accu-Flange Extension Rings
$49.99
Quantity: 1
Claim Your Seller Account
Accu-Flange Extension Rings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

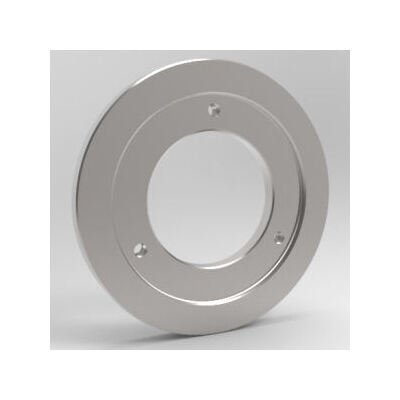

The Accu-Flange Extension Rings are precision-engineered to extend the outer diameter of Accu-Flange™ Collars and Precision Sleeve Flange Couplings, offering versatile mounting options with three adapter holes customizable for various bolt patterns. These rings, available in 1018 Steel, Stainless Steel, and Aluminum options, can be welded or bolted onto components, enhancing structural integrity. With inside diameter of 1.627 in and outside diameter of 4.625 in, these rings provide a secure fit and reliable performance in industrial applications.
Product Specifications
Dimensional Attributes Accu Flange Collar Bore Size
5/8 in
Dimensional Attributes Inside Diameter
1.627 in
Dimensional Attributes Mounting Hole
10-24
Dimensional Attributes Outside Diameter
4.625 in
Dimensional Attributes Width
0.375 in
Specifications Alloy
2024-T351
Specifications Approximate Weight
0.55 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
FRA0103754625
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786031922
