Accuchiller EQ Series 2 Ton (t) Cooling Capacity and 44 Inch (in) Height Air Cooled Portable Remote Condenser Chiller
Accuchiller EQ Series 2 Ton (t) Cooling Capacity and 44 Inch (in) Height Air Cooled Portable Remote Condenser Chiller
SKU:ACC-b9561e
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Accuchiller EQ Series 2 Ton (t) Cooling Capacity and 44 Inch (in) Height Air Cooled Portable Remote Condenser Chiller
$49.99
Quantity: 1
Claim Your Seller Account
Accuchiller EQ Series 2 Ton (t) Cooling Capacity and 44 Inch (in) Height Air Cooled Portable Remote Condenser Chiller
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

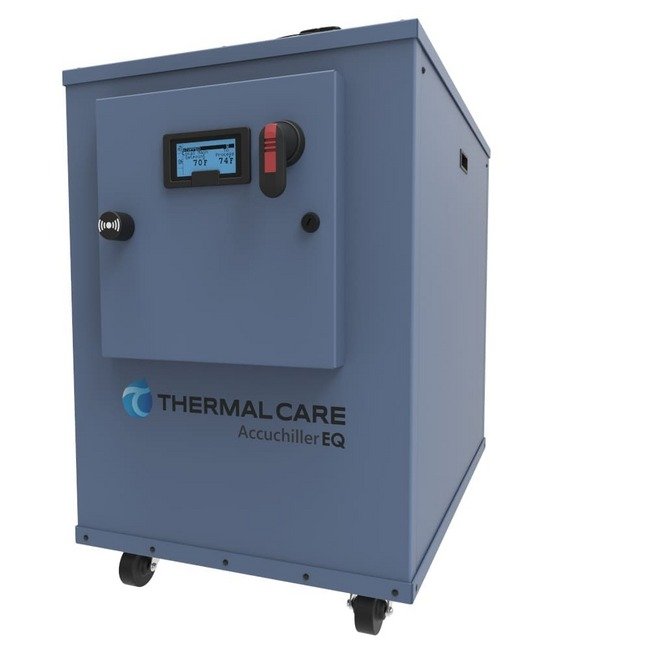

Accuchiller EQ Series portable industrial chillers feature a compact footprint with an easily accessible interior and a PLC controller that provides precise temperature control and extensive diagnostics. Air-cooled, water-cooled and remote condenser models are packed with many standard innovative features that improve chiller performance and reliability.
Product Specifications
Additional Information
PLC controller provides diagnostics and precise temperature controlNon-ferrous process fluid circuitDirect drive scroll compressorGenerously sized air-cooled condensers for industrial environments with ambient temperatures up to 115 ºFInternal insulated polyethylene reservoir with large capacity and a removable topCondenser fan discharges air quietly through top of the chillerProcess Y-strainer protects the evaporator from contaminants in the waterStainless steel brazed plate evaporator with flow and temperature safeties to guard against freezingRemovable inlet air filter (air-cooled units only) is easily cleaned and protects condenser coils to assure maximum efficiencyHigh efficiency quiet fansModular hot gas bypass provides accurate capacity control and extends compressor lifeLow voltage 24 VDC control keeps the control circuit signals free from AC interferenceEvaporator freeze-up protection reduces potential for evaporator damageEasily removable side panel allows for easy access to interior componentsPortable & Packaged ChillersAn industrial Portable or Packaged Water Chiller refers to a unique design configuration of a self-contained chiller system that combines all necessary components including - the refrigeration circuit, controls and electrics, process pump and reservoir all within a single unit. Most often a Portable Packaged Chiller has a small footprint, is mobile and is located near the process being cooled. The capacity of these units usually range from 1 to 40 tons of cooling.Portable & Packaged Chillers for Most ApplicationsThere are three different types of Portable Packaged Chillers: air-cooled, water-cooled or remote condenser also referred to as a split system. These three types of chiller systems refer to the type of condenser used to ultimately reject the process heat.Portable Packaged Chillers are useful for small process loads or where special process fluids, flows, pressures or temperatures are required. They also are ideal for test applications and for temporary use.Thermal Care EQ and NQ series portable packaged chillers utilize scroll compressors, microchannel condensers, low noise fans, stainless steel brazed plate evaporators and PLC controls to provide the best available technologies for the ultimate performance and reliability in a chiller package.No other manufacturer can offer you a larger selection of portable / packaged chillers than Thermal Care. Whether you need an air-cooled portable chiller, a water-cooled portable chiller, or a remote condenser portable chiller, chances are there is an economical Accuchiller that meets your exact requirements.
Available Options
C-UL 508A industrial control panel with single point electrical connectionRotary non-fused disconnect for quick and safe main power disconnect5 year compressor parts warrantyAlarm hornReturn piping kit

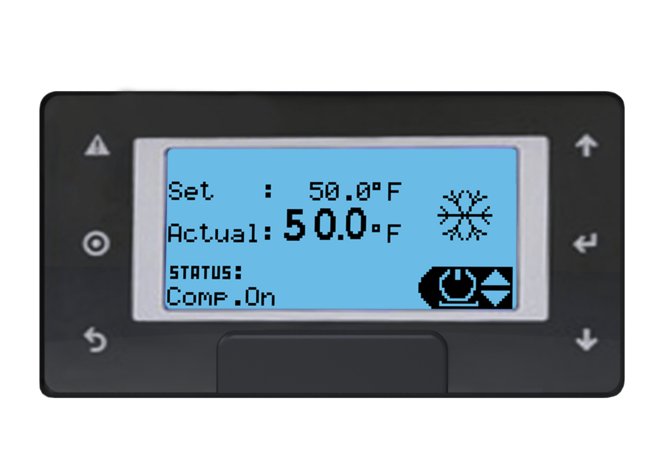

Controller
Accuchiller EQ portable chillers come standard with a PLC controller to make it easy to set and read temperatures, alarms and operating parameters.
Dimensions Height
44 in
Dimensions Length
40 in
Dimensions Width
24 in
Specifications Cooling Capacity
2 ton
Specifications Frequency
60 Hz
Specifications Minimum Circuit Ampacity Mca
8 A
Specifications Note For Cooling Capacity
Cooling tons based on using R-407c refrigerant with 12,000 BTU/Hr/ton with 50 ºF leaving coolant and 95 ºF ambient air.
Specifications Note For Minimum Circuit Ampacity Mca
MCA is Minimum Circuit Amps with standard condenser fan and pump under full load, used for minimum wire size requirement.
Specifications Phase
3
Specifications Series
EQ
Specifications Set Point Temperature Range
20 to 65 ºF
Specifications Shipping Weight
420 lb
Specifications Standard Pump Flow
5 gpm
Specifications Standard Pump Power
1 hp
Specifications Standard Pump Pressure
39 psi
Specifications Voltage
460 V
