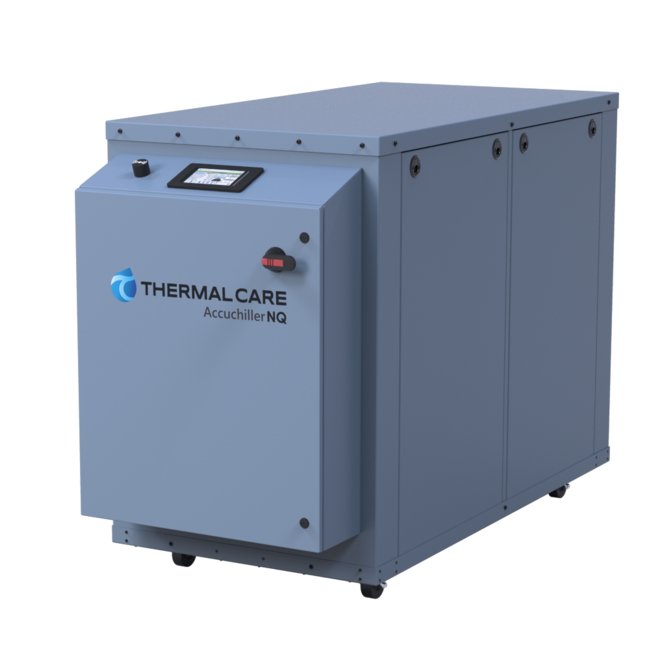

NQ Series industrial portable chillers use components such as scroll compressors, microchannel condensers, low noise fans, stainless steel brazed plate evaporators, and NQ Series PLC controls with large color touch screens to provide the best available technologies for the ultimate performance and reliability in a chiller package.Now available - the Accuchiller NQV Series with variable speed scroll compressors. Available on 5 to 30 ton sizes for even more efficiency.
Product Specifications
Additional Information
Control System provides diagnostics and precise temperature controlEnvironmentally friendly and energy efficient R410A refrigerantCompact microchannel all aluminum air-cooled condensers for increased durabilityStainless steel brazed plate evaporators with flow and temperature safeties to guard against freezingReliable and energy efficient scroll compressorsCompressor staging for reduced energy use on 20 ton and larger unitsRemote 4-20 mA set point temperature input capability for increased application flexibilityLow voltage 24 VDC control keeps the control circuit signals free from AC interferenceInternal insulated polyethylene reservoirToos-free removable doorsSolid state safety switches with electronic sensing devicesHot gas bypass provides accurate capacity control and extends compressor lifeWater regulating valve (water cooled units only) keeps refrigerant pressure constant18 month parts, and 12 month labor warrantyPortable & Packaged ChillersAn industrial Portable or Packaged Water Chiller refers to a unique design configuration of a self-contained chiller system that combines all necessary components including - the refrigeration circuit, controls and electrics, process pump and reservoir all within a single unit. Most often a Portable Packaged Chiller has a small footprint, is mobile and is located near the process being cooled. The capacity of these units usually range from 1 to 40 tons of cooling.Portable & Packaged Chillers for Most ApplicationsThere are three different types of Portable Packaged Chillers: air-cooled, water-cooled or remote condenser also referred to as a split system. These three types of chiller systems refer to the type of condenser used to ultimately reject the process heat.Portable Packaged Chillers are useful for small process loads or where special process fluids, flows, pressures or temperatures are required. They also are ideal for test applications and for temporary use.Thermal Care EQ and NQ series portable packaged chillers utilize scroll compressors, microchannel condensers, low noise fans, stainless steel brazed plate evaporators and PLC controls to provide the best available technologies for the ultimate performance and reliability in a chiller package.No other manufacturer can offer you a larger selection of portable / packaged chillers than Thermal Care. Whether you need an air-cooled portable chiller, a water-cooled portable chiller, or a remote condenser portable chiller, chances are there is an economical Accuchiller that meets your exact requirements.
Available Options
C-UL 508A industrial control panel with single point electrical connectionRotary non-fused disconnect for quick and safe main power disconnectOutdoor duty constructionVFD compressor for energy savings5 year compressor parts warrantyAlarm hornAlarm contactUpsize tankReturn piping kitCONNEX 4.0 for system-wide control
Controller
Accuchiller NQ Series chillers include a large color touch screen and PLC controls.
Dimensions Height
53 in
Dimensions Length
75 in
Dimensions Width
34 in
Specifications Compressor Quantity
1
Specifications Cooling Capacity
15 ton
Specifications Net Available Pump Pressure
35 psi
Specifications Note For Cooling Capacity
Cooling tons based on 12,000 BTU/Hr/ton with 50 ºF leaving coolant and 85 ºF condenser water, R410A refrigerant.
Specifications Note For Net Available Pump Pressure
Net available pressure at outlet of chiller is pump discharge pressure less internal pressure loss through the fluid circuit.
Specifications Process Connections
1.5 in
Specifications Pump Flow
39 gpm
Specifications Pump Motor Power
3 hp
Specifications Reservoir Holding Capacity
30 gal
Specifications Series
NQ
Specifications Set Point Temperature Range
20 to 80 ºF
Specifications Shipping Weight
1315 lb
Specifications Sound Pressure At 1 Meter M
73 dBA
