Single circuit up to 120 tons Dual circuit up to 240 tonsThermal Care is at the leading edge of process cooling technology. TC Series centrifugal compressor industrial central chillers use revolutionary, frictionless, magnetic bearing Turbocor compressors to deliver optimum chiller performance and part load efficiencies. This translates into the quietest, most reliable, and most energy efficient chillers ever built. Models are available with either single or completely independent dual refrigeration circuits.

Product Specifications

Additional Information
Water cooled and remote condenser models availableAdvanced PLC System maintains stable and reliable operation of the chillerStainless steel brazed plate evaporators for efficiency and corrosion resistanceEnergy-efficient, variable speed drive, Turbocor centrifugal compressor reduces operating costs vs conventional fixed-speed compressor technologiesC-UL 508A listed and labeled industrial control panelRotary circuit breakers for each compressorSingle point connection for electrical hook-up at control cabinetOnly one major moving part - the compressor impeller which is used to compress gas and provides the highest full load efficiency. In addition, the Turbocor centrifugal compressor design operates at compression ratios as low as 1.2 (discharge pressure/suction pressure) compared to 1.8 or higher for other types of compressors. Lower compression ratios means less energy use.
Dimensions Height
77 in
Dimensions Length
124 in
Dimensions Width
54 in
Integrated Programmable Logic Control Plc
Adaptive control maximize operational performanceProvides extensive sensing capabilities and monitors compressor bearing and shaft positions six million times per minuteCommunications package allows for remote diagnostics of the chillerBuilt-in 24 VDC control circuitry
Integrated Variable Speed Drive Motor Control
Enhances temperature control capability for partial load performance.Soft-start control reduces peak energy demand and extends motor life by lowering initial current inrush at start-upLowest noise level; whisper quiet sound levels with 74 dBA (per compressor) and virtually no structure-born vibration

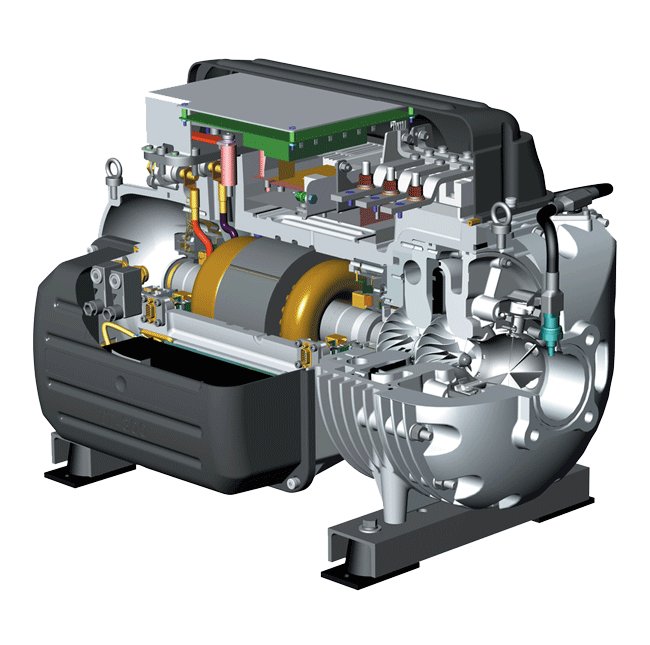

Magnetic Friction Free Bearings
Equipment life is extended since there is no contact with surfaces as the shaft rotatesCompressor senses a power failure as a normal shutdown. Internal capacitors and rotational energy allow the motor to become a generator and provide a fail-safe shutdown.Compressor shaft rests on a graphite-lined touchdown bearing when not in operation
Oil Free Operation
Eliminates oil management system and all related maintenance costsNo potential oil contamination of refrigerantNo compressor failure due to oil contaminationLower energy required can save up to 40% in annual operating costs when compared to screw-type compressor

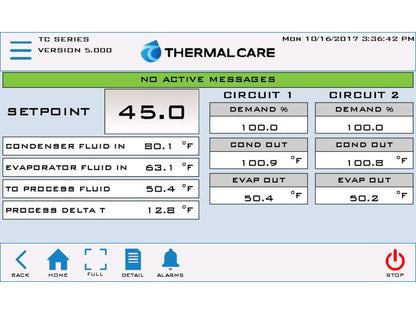

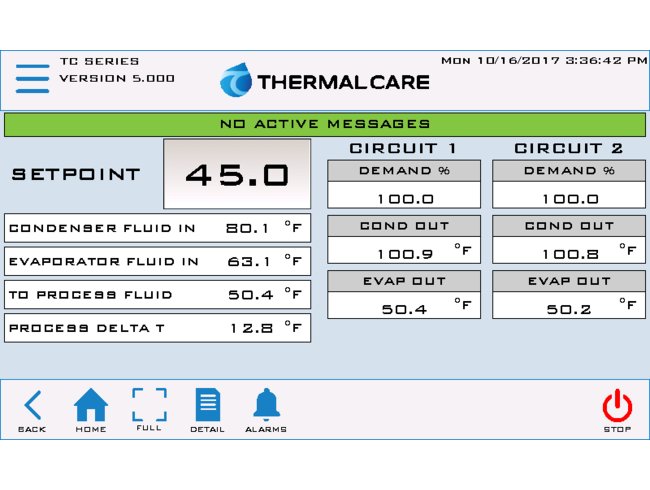

Programmable Logic Control Plc System
A powerful PLC control system monitors, controls, and maintains stable and reliable chiller performance.
Specifications Compressor Quantity
2
Specifications Condenser Water Inlet And Outlet Flange
6 in
Specifications Cooling Capacity
30 to 180 ton
Specifications Note For Cooling Capacity
Cooling capacity when cooling water with 50 ºF set point, 60 ºF return, and 85 ºF condenser water., R134a refrigerant.
Specifications Operating Weight
4200 lb
Specifications Process Water Inlet And Outlet Flange
4 in
Specifications Series
TC
Specifications Set Point Temperature Range
40 to 75 ºF
Specifications Shipping Weight
3800 lb
