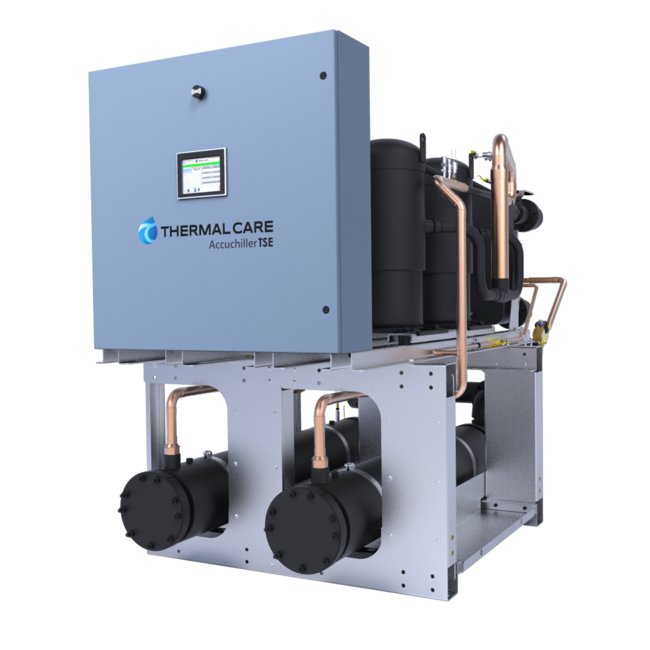

Accuchiller TSE Series 240 Ton (t) Cooling Capacity Water Cooled Condenser Dual Circuit Chiller
Accuchiller TSE Series 240 Ton (t) Cooling Capacity Water Cooled Condenser Dual Circuit Chiller
SKU:ACC-220aef
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Accuchiller TSE Series 240 Ton (t) Cooling Capacity Water Cooled Condenser Dual Circuit Chiller
$49.99
Quantity: 1
Claim Your Seller Account
Accuchiller TSE Series 240 Ton (t) Cooling Capacity Water Cooled Condenser Dual Circuit Chiller
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The compact size of the TSE industrial central chiller minimizes floor space; while its modular design allows up to 12 refrigeration circuits to be combined into a single system for over 1,000 tons of cooling capacity. The chiller's innovative high flow design assures consistent process leaving water temperatures from 20ºF to 80ºF and as low as 5ºF differential across the process.
Product Specifications
Additional Information
Water-cooled and remote air-cooled condenser models are availableAdvanced PLC Control System with high-resolution color touch-screen operator interface with an extensive list of operational information including compressor run hoursBrazed plate evaporators maximize performance and increase resistance to costly freeze-up failuresCompressor staging for capacity control with optional hot gas bypass for even greater unloading capabilitiesScroll compressors last longer, increase efficiency and lower operating costsC-UL 508A listed and labeled control panelCompressor anti-cycle and start-up timerLead/lag switch to alternate primary compressorIn-line evaporator strainers assure full evaporator performanceWater-cooled chillers include condenser water regulating valvesSingle point connection for electric hook-up at control cabinetCleanable frame mounted water-cooled condensers with removable heads (water-cooled only)Electronic expansion valvesLiquid line solenoid valves to extend compressor lifeRefrigerant sight glassesLiquid line filter driers with removable coresHigh and low refrigerant pressure switchesAlarm horn with silence button3-phase power monitoring and safety protection410a refrigerantTSE Series chillers now come standard with Dynamic Lift Technology to continuously calculate the lowest allowable refrigerant pressure for any combination of operating conditions for maximize chiller energy savings and more stable and smooth control of refrigerant pressure, especially under varying load and condenser inlet temperatures.
Available Options
High and low pressure pumping with dedicated stand-by pump for quick and easy installationRotary non-fused disconnect switchHot-gas bypass minimum load capacity control5-year compressor parts warrantyExpert field start-up provided by qualified service personnelCONNEX 4.0 for system-wide control
Dimensions Height
71 in
Dimensions Length
141 in
Dimensions Width
60 in
Programmable Logic Control Plc System

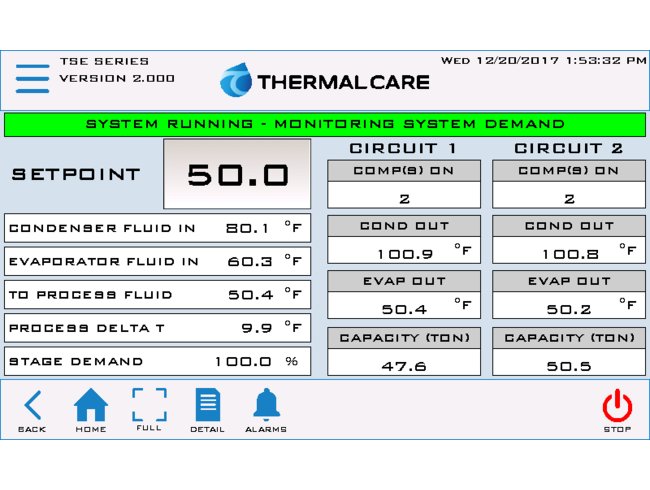

The PLC control system combines a controller, operation interface, I/O and networking capability into one seamless solution.
Specifications Compressor Circuit 1 Quantity
3
Specifications Compressor Circuit 2 Quantity
3
Specifications Condenser Water Inlet And Outlet Flange
6 in
Specifications Cooling Capacity
240 ton
Specifications Frequency
60 Hz
Specifications Minimum Circuit Ampacity Mca
457 A
Specifications Note For Cooling Capacity
Cooling capacity when cooling water with 50 ºF set point, 60 ºF return, 85 ºF condenser water, R-410A refrigerant.
Specifications Note For Minimum Circuit Ampacity Mca
MCA is Minimum Circuit Amps under full load used for minimum wire size requirements.
Specifications Operating Weight
5980 lb
Specifications Phase
3
Specifications Process Inlet And Outlet Flange
6 in
Specifications Series
TSE
Specifications Set Point Temperature Range
20 to 80 ºF
Specifications Shipping Weight
5780 lb
Specifications Voltage
460 V
