The compact size of the TSE industrial central chiller minimizes floor space; while its modular design allows up to 12 refrigeration circuits to be combined into a single system for over 1,000 tons of cooling capacity. The chiller's innovative high flow design assures consistent process leaving water temperatures from 20ºF to 80ºF and as low as 5ºF differential across the process.
Product Specifications
Additional Information
Water-cooled and remote air-cooled condenser models are availableAdvanced PLC Control System with high-resolution color touch-screen operator interface with an extensive list of operational information including compressor run hoursBrazed plate evaporators maximize performance and increase resistance to costly freeze-up failuresCompressor staging for capacity control with optional hot gas bypass for even greater unloading capabilitiesScroll compressors last longer, increase efficiency and lower operating costsC-UL 508A listed and labeled control panelCompressor anti-cycle and start-up timerLead/lag switch to alternate primary compressorIn-line evaporator strainers assure full evaporator performanceWater-cooled chillers include condenser water regulating valvesSingle point connection for electric hook-up at control cabinetCleanable frame mounted water-cooled condensers with removable heads (water-cooled only)Electronic expansion valvesLiquid line solenoid valves to extend compressor lifeRefrigerant sight glassesLiquid line filter driers with removable coresHigh and low refrigerant pressure switchesAlarm horn with silence button3-phase power monitoring and safety protection410a refrigerantTSE Series chillers now come standard with Dynamic Lift Technology to continuously calculate the lowest allowable refrigerant pressure for any combination of operating conditions for maximize chiller energy savings and more stable and smooth control of refrigerant pressure, especially under varying load and condenser inlet temperatures.
Available Options
High and low pressure pumping with dedicated stand-by pump for quick and easy installationRotary non-fused disconnect switchHot-gas bypass minimum load capacity control5-year compressor parts warrantyExpert field start-up provided by qualified service personnelCONNEX 4.0 for system-wide control
Chiller With High Flow Reservoir Option Frequency High Flow Rese
60 Hz
Chiller With High Flow Reservoir Option Height High Flow Reservo
73 in
Chiller With High Flow Reservoir Option Length High Flow Reservo
123 in
Chiller With High Flow Reservoir Option Minimum Circuit Ampacity
81 A
Chiller With High Flow Reservoir Option Note For Minimum Circuit
MCA is Minimum Circuit Amps under full load, used for minimum wire size requirements.
Chiller With High Flow Reservoir Option Operating Weight High Fl
7650 lb
Chiller With High Flow Reservoir Option Phase High Flow Reservoi
3
Chiller With High Flow Reservoir Option Process And Chiller Pump
10/2 hp
Chiller With High Flow Reservoir Option Process Connection Size
3 in
Chiller With High Flow Reservoir Option Reservoir Capacity High
400 gal
Chiller With High Flow Reservoir Option Shipping Weight High Flo
6400 lb
Chiller With High Flow Reservoir Option Voltage High Flow Reserv
460 V
Chiller With High Flow Reservoir Option Width High Flow Reservoi
74 in
Chiller With Standard Flow Reseivoir Option Frequency Standard F
60 Hz
Chiller With Standard Flow Reseivoir Option Height Standard Flow
73 in
Chiller With Standard Flow Reseivoir Option Length Standard Flow
123 in
Chiller With Standard Flow Reseivoir Option Minimum Circuit Ampa
78 A
Chiller With Standard Flow Reseivoir Option Note For Minimum Cir
MCA is Minimum Circuit Amps under full load, used for minimum wire size requirements.
Chiller With Standard Flow Reseivoir Option Operating Weight Sta
6042 lb
Chiller With Standard Flow Reseivoir Option Phase Standard Flow
3
Chiller With Standard Flow Reseivoir Option Process And Chiller
7.5/2 hp
Chiller With Standard Flow Reseivoir Option Process Connection S
2.5 in
Chiller With Standard Flow Reseivoir Option Reservoir Capacity S
275 gal
Chiller With Standard Flow Reseivoir Option Shipping Weight Stan
3748 lb
Chiller With Standard Flow Reseivoir Option Voltage Standard Flo
460 V
Chiller With Standard Flow Reseivoir Option Width Standard Flow
74 in
Dimensions Height
68 in
Dimensions Length
77 in
Dimensions Width
49 in

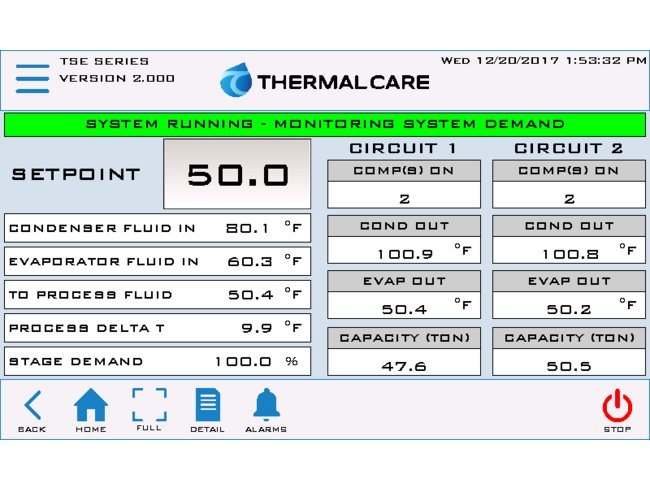

Programmable Logic Control Plc System
The PLC control system combines a controller, operation interface, I/O and networking capability into one seamless solution.
Specifications Compressor Circuit 1 Quantity
2
Specifications Compressor Circuit 2 Quantity
2
Specifications Condenser Water Inlet And Outlet Flange
2.5 in
Specifications Cooling Capacity
30 ton
Specifications Frequency
60 Hz
Specifications Note For Cooling Capacity
Cooling capacity when cooling water with 50 ºF set point, 60 ºF return, 85 ºF condenser water, R-410A refrigerant.
Specifications Voltage
460 V
