Accuchiller TSE Series 40 Ton (t) Cooling Capacity Water Cooled Condenser Single Circuit Chiller with Integral Tank
Accuchiller TSE Series 40 Ton (t) Cooling Capacity Water Cooled Condenser Single Circuit Chiller with Integral Tank
SKU:ACC-edf120
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Accuchiller TSE Series 40 Ton (t) Cooling Capacity Water Cooled Condenser Single Circuit Chiller with Integral Tank
$49.99
Quantity: 1
Claim Your Seller Account
Accuchiller TSE Series 40 Ton (t) Cooling Capacity Water Cooled Condenser Single Circuit Chiller with Integral Tank
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

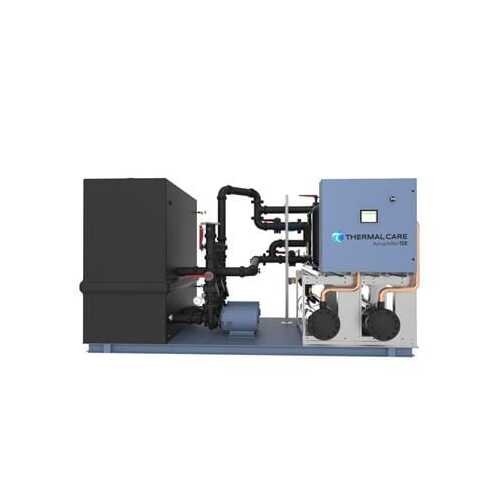

Our Accuchiller TSE Series central chiller with tank integrates a chiller with a complete process pumping system and reservoir in one package to minimize floor space. Units come fully assembled and wired, ready for quick and simple installation and include an insulated integral tank and pumping system mounted on the same frame.With a process pump and chiller pump as standard or with an optional dual standby or dedicated standby pumps, this package provides a wide range of options and configurations to suit any process need. All pumps are prewired to the control panel to save on costly field installation. All interconnecting piping, pumps, manifolds, and reservoir are insulated to prevent condensation and improve the system efficiency.
Product Specifications
Additional Information
Water-cooled and remote air-cooled condenser models availableAdvanced PLC Control System with high-resolution color touch-screen operator interface with an extensive list of operational information including compressor run hoursTank includes - pumps, tank, tank cover, water level sight glass, electric make-up valve, tank insulation, pump and trim insulation, insulated interconnecting piping to evaporator, pump starters and wiring of pumps to control panelBrazed plate evaporators maximize performance and increase resistance to costly freeze-up failuresCompressor staging for capacity control with optional hot gas bypass for even greater unloading capabilitiesScroll compressors last longer, increase efficiency and lower operating costsC-UL 508A listed and labeled control panelCompressor anti-cycle and start-up timerLead/lag switch to alternate primary compressorIn-line evaporator strainers assure full evaporator performanceWater-cooled chillers include condenser water regulating valvesSingle point connection for electric hook-up at control cabinetCleanable frame mounted water-cooled condensers with removable heads (water-cooled only)Electronic expansion valvesLiquid line solenoid valves to extend compressor lifeRefrigerant sight glassesLiquid line filter driers with removable coresHigh and low refrigerant pressure switchesAlarm horn with silence button3-phase power monitoring and safety protection410a refrigerantThe advanced PLC uses a color touch-screen interface to make monitoring and control of the chiller and pumping system easy. TSE Series central chillers have a modular design that allows up to 12 refrigeration circuits to be combined into a single system for over 1,000 tons of cooling capacity. The chiller's innovative high flow design assures consistent process leaving water temperatures from 20 ºF to 80 ºF and as low as 5 ºF differential across the process.TSE Series chillers now come standard with Dynamic Lift technology to continuously calculate the lowest allowable refrigerant pressure for any combination of operating conditions for maximize chiller energy savings and more stable and smooth control of refrigerant pressure, especially under varying load and condenser inlet temperatures.
Available Options
Rotary non-fused disconnect switchHot-gas bypass minimum load capacity controlModBus RTU, BACnet, or LonWorks communications port5-year compressor parts warrantyCONNEX 4.0 for system-wide controlExpert field start-up provided by qualified service personnel
Chiller With High Flow Reservoir Option Frequency High Flow Rese
60 Hz
Chiller With High Flow Reservoir Option Height High Flow Reservo
73 in
Chiller With High Flow Reservoir Option Length High Flow Reservo
99 in
Chiller With High Flow Reservoir Option Minimum Circuit Ampacity
95 A
Chiller With High Flow Reservoir Option Note For Minimum Circuit
MCA is Minimum Circuit Amps under full load, used for minimum wire size requirements.
Chiller With High Flow Reservoir Option Operating Weight High Fl
7350 lb
Chiller With High Flow Reservoir Option Phase High Flow Reservoi
3
Chiller With High Flow Reservoir Option Process And Chiller Pump
15/2 hp
Chiller With High Flow Reservoir Option Process Connection Size
4 in
Chiller With High Flow Reservoir Option Reservoir Capacity High
400 gal
Chiller With High Flow Reservoir Option Shipping Weight High Flo
4000 lb
Chiller With High Flow Reservoir Option Voltage High Flow Reserv
460 V
Chiller With High Flow Reservoir Option Width High Flow Reservoi
98 in
Chiller With Standard Flow Reseivoir Option Frequency Standard F
60 Hz
Chiller With Standard Flow Reseivoir Option Height Standard Flow
73 in
Chiller With Standard Flow Reseivoir Option Length Standard Flow
99 in
Chiller With Standard Flow Reseivoir Option Minimum Circuit Ampa
83 A
Chiller With Standard Flow Reseivoir Option Note For Minimum Cir
MCA is Minimum Circuit Amps under full load, used for minimum wire size requirements.
Chiller With Standard Flow Reseivoir Option Operating Weight Sta
5532 lb
Chiller With Standard Flow Reseivoir Option Phase Standard Flow
3
Chiller With Standard Flow Reseivoir Option Process And Chiller
10/2 hp
Chiller With Standard Flow Reseivoir Option Process Connection S
2.5 in
Chiller With Standard Flow Reseivoir Option Reservoir Capacity S
275 gal
Chiller With Standard Flow Reseivoir Option Shipping Weight Stan
3238 lb
Chiller With Standard Flow Reseivoir Option Voltage Standard Flo
460 V
Chiller With Standard Flow Reseivoir Option Width Standard Flow
98 in

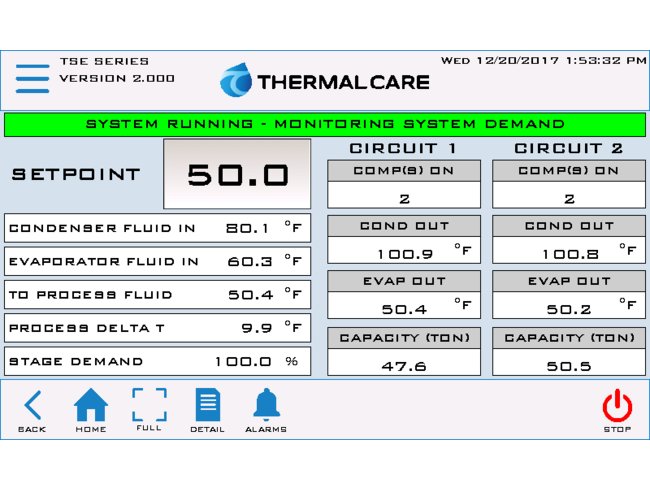

Programmable Logic Control Plc System
The PLC control system combines a controller, operation interface, I/O and networking capability into one seamless solution.
Specifications Compressor Quantity
2
Specifications Condenser Water Inlet And Outlet Flange
3 in
Specifications Cooling Capacity
40 ton
Specifications Frequency
60 Hz
Specifications Minimum Circuit Ampacity Mca
70 A
Specifications Note For Cooling Capacity
Cooling capacity when cooling water with 50 ºF set point, 60 ºF return, 85 ºF condenser water, R-410A refrigerant.
Specifications Note For Minimum Circuit Ampacity Mca
MCA is Minimum Circuit Amps under full load used for minimum wire size requirements.
Specifications Operating Weight
1823 lb
Specifications Phase
3
Specifications Voltage
460 V
