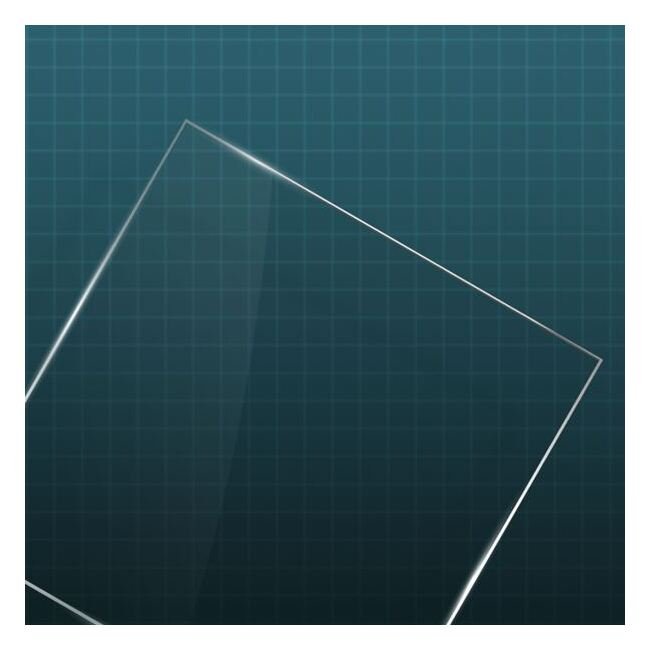

Accumet Dynasil 4000 Fused Silica Ceramic Substrate
Accumet Dynasil 4000 Fused Silica Ceramic Substrate
SKU:CER-08fe26
High-quality Accumet Dynasil 4000 Fused Silica Ceramic Substrate for precise optical applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Accumet Dynasil 4000 Fused Silica Ceramic Substrate
$199.99
Quantity: 1
Claim Your Seller Account
Accumet Dynasil 4000 Fused Silica Ceramic Substrate
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Accumet Dynasil 4000 Fused Silica Ceramic Substrate, also known as Silicon Dioxide (SiO2), is designed for optical applications with superior UV/IR transmission and low thermal expansion. Renowned for its exceptional stability, resistance to thermal shock, wide temperature range, and high laser damage threshold. Expertly machined with precise tolerances and available with additional services like polishing, dicing, and laser cutting.
Product Specifications
Additional Information Additional Information
Accumet's ceramic substrates can be professionally supplied ready to use, as we are experts in all areas of ceramic machining services, including: polishing; dicing; lapping; grinding; marking, and laser cutting and drilling. As experts in the field of ceramic machining we've honed our ability to provide the tightest tolerances on every level, from ultra-thin, ultra-smooth thicknesses and surfaces, to the smallest and closest through-holes and vias. All of our ceramic substrate materials are stocked and supplied from our advanced manufacturing facilities in Westford, MA and Hudson, MA.When RF designers are weighing material choices and considering circuit design during prototype development, Accumetâs material and process engineering expertise is there to guide them. Whether it be tapping into Accumetâs extensive knowledge of ceramics and other RF materials, circuit design, anticipated yield loss, attainable surface finish, adhesion concerns, or any of the other multiple factors to be considered with regards to circuit manufacturability, Accumetâs engineering staff is ready to help. Upon completion of lasered, lapped, or polished raw substrate orders, customers often ship the substrates back to Accumet after their manufacturing processes are complete for secondary processing. We ship worldwide, offer low minimum orders, and we deliver a full range of advanced manufacturing services from hands-on prototyping to full production runs, to ensure you get the most optimally prepared ceramics delivered on time, every time.
Note Note
Available Off the Shelf in the Exact Quantity You Need
Technical Specs Applications
Electronic | Semiconductor
Technical Specs Brands
Accumet Engineering
Technical Specs Color
White/Transparent
Technical Specs Compressive Strength At M10
102 lb/in
Technical Specs Density
2.2 g/cm²
Technical Specs Dielectric Constant
3.826 MHz at R.T.
Technical Specs Dielectric Strength
500 kV/mm | 150 to 200 kV/cm
Technical Specs Flexural Strength At K102
25 lb/in²
Technical Specs Hardness Rockwell
600 kg/mm²
Technical Specs Polsons Ratio For American Society For Testing A
0.17
