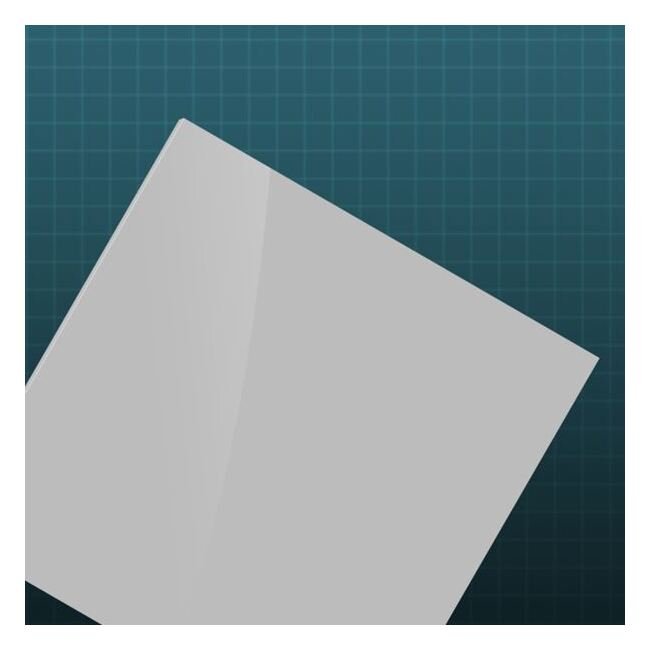

Accumet Engineering Corning Pyrex (7740) Ceramic Substrate

Name: Accumet Engineering Corning Pyrex (7740) Ceramic Substrate
Brand: Accumet Engineering
SKU: CER-298923
Price: 45.99 USD
Availability: OutOfStock

SKU:CER-298923

Premium Corning Pyrex (7740) Ceramic Substrate for precision electronic and semiconductor applications.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Accumet Engineering Corning Pyrex (7740) Ceramic Substrate is a premium-grade material renowned for its exceptional resistance to water, acids, salt solutions, halogens, and organic solvents, making it a staple in the science and aerospace sectors. With a white/transparent color, a density of 2.25 g/cm², and a Flexural Strength (MOR) of 69 MPa at R.T., this substrate exhibits superior thermal expansion resistance, thermal conductivity of 1.1 W/m-K at R.T., dielectric constant of 4.6 MHz at R.T., and dielectric strength of 0.5 kV/mm. It boasts a random crystal structure and can withstand thermal shock up to 100. Expertly machined and prepared by Accumet, this ceramic substrate is perfect for electronic and semiconductor applications.

Product Specifications

Additional Information Additional Information

Accumet's ceramic substrates can be professionally supplied ready to use, as we are experts in all areas of ceramic machining services, including: polishing; dicing; lapping; grinding; marking, and laser cutting and drilling. As experts in the field of ceramic machining we've honed our ability to provide the tightest tolerances on every level, from ultra-thin, ultra-smooth thicknesses and surfaces, to the smallest and closest through-holes and vias. All of our ceramic substrate materials are stocked and supplied from our advanced manufacturing facilities in Westford, MA and Hudson, MA.When RF designers are weighing material choices and considering circuit design during prototype development, Accumetâs material and process engineering expertise is there to guide them. Whether it be tapping into Accumetâs extensive knowledge of ceramics and other RF materials, circuit design, anticipated yield loss, attainable surface finish, adhesion concerns, or any of the other multiple factors to be considered with regards to circuit manufacturability, Accumetâs engineering staff is ready to help. Upon completion of lasered, lapped, or polished raw substrate orders, customers often ship the substrates back to Accumet after their manufacturing processes are complete for secondary processing. We ship worldwide, offer low minimum orders, and we deliver a full range of advanced manufacturing services from hands-on prototyping to full production runs, to ensure you get the most optimally prepared ceramics delivered on time, every time.

Note Note

Available Off the Shelf in the Exact Quantity You Need

Technical Specs Applications

Electronic | Semiconductor

Technical Specs Brands

Accumet Engineering

Technical Specs Color

White/Transparent

Technical Specs Crystal Structure

Random

Technical Specs Density

2.25 g/cmÂ²

Technical Specs Dielectric Constant

4.6 MHz at R.T.

Technical Specs Dielectric Strength

0.5 kV/mm

Technical Specs Flexural Strength Mor

69 MPa at R.T.

Technical Specs Polsons Ratio For American Society For Testing A

0.2

Technical Specs Thermal Conductivity

1.1 W/m-K at R.T.

Technical Specs Thermal Shock Resistence

100
