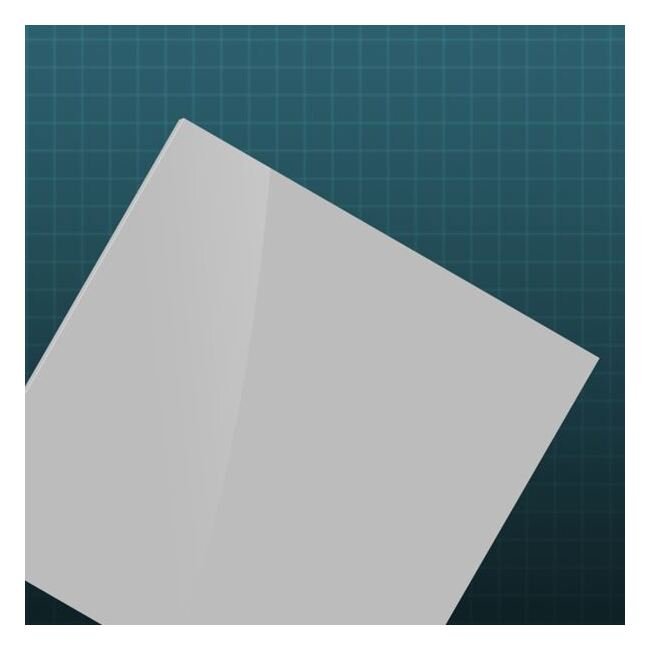

The Accumet Engineering MACOR Ceramic Substrate is a versatile solution designed for a wide range of industrial applications. Offering exceptional thermal insulation capabilities, this substrate remains stable at temperatures up to 1000 ºC, exhibiting minimal thermal expansion and outgassing. With a comprehensive range of technical specifications and advanced manufacturing services, Accumet Engineering ensures precise machining and delivery of ceramics that meet the highest standards of quality and performance.
Product Specifications
Additional Information Additional Information
Accumet's ceramic substrates can be professionally supplied ready to use, as we are experts in all areas of ceramic machining services, including: polishing; dicing; lapping; grinding; marking, and laser cutting and drilling. As experts in the field of ceramic machining we've honed our ability to provide the tightest tolerances on every level, from ultra-thin, ultra-smooth thicknesses and surfaces, to the smallest and closest through-holes and vias. All of our ceramic substrate materials are stocked and supplied from our advanced manufacturing facilities in Westford, MA and Hudson, MA.When RF designers are weighing material choices and considering circuit design during prototype development, Accumetâs material and process engineering expertise is there to guide them. Whether it be tapping into Accumetâs extensive knowledge of ceramics and other RF materials, circuit design, anticipated yield loss, attainable surface finish, adhesion concerns, or any of the other multiple factors to be considered with regards to circuit manufacturability, Accumetâs engineering staff is ready to help. Upon completion of lasered, lapped, or polished raw substrate orders, customers often ship the substrates back to Accumet after their manufacturing processes are complete for secondary processing. We ship worldwide, offer low minimum orders, and we deliver a full range of advanced manufacturing services from hands-on prototyping to full production runs, to ensure you get the most optimally prepared ceramics delivered on time, every time.
Note Note
Available Off the Shelf in the Exact Quantity You Need
Technical Specs Applications
Electronic | Semiconductor
Technical Specs Brands
Accumet Engineering
Technical Specs Color
White
Technical Specs Compressive Strength
345 MPa at R.T.
Technical Specs Crystal Structure
Random
Technical Specs Density
2.52 g/cm²
Technical Specs Dielectric Constant
6.03 MHz at R.T.
Technical Specs Dielectric Strength
40 kV/mm
Technical Specs Flexural Strength Mor
94 MPa at R.T.
Technical Specs Polsons Ratio For American Society For Testing A
0.29
Technical Specs Thermal Conductivity
1.46 W/m-K at R.T.
Technical Specs Thermal Shock Resistence
24 to 100
