AccuPro 6000-TS Digital Scale Controllers
AccuPro 6000-TS Digital Scale Controllers
SKU:DIG-eeb03a
AccuPro 6000-TS Controllers: Precision, versatility, and compliance for industrial weighing needs.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
AccuPro 6000-TS Digital Scale Controllers
$899.99
Quantity: 1
Claim Your Seller Account
AccuPro 6000-TS Digital Scale Controllers
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

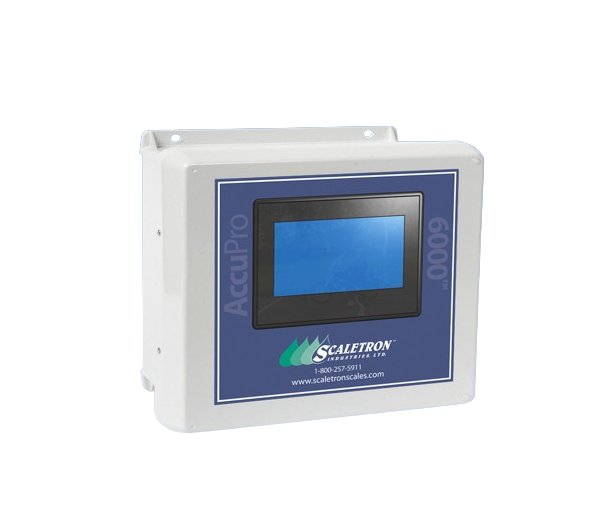

The AccuPro 6000-TS Digital Scale Controllers with Touch Screen redefine precision weighing for industrial applications. Designed to work seamlessly with various scale bases, this controller offers exceptional accuracy ranging from 0.1% to 0.25% of full scale capacity. The user-friendly 4.3" touch screen display allows for intuitive operation and can show weight measurements in pounds, kilograms, gallons, or liters. With customizable set points, remote monitoring options, and robust construction meeting NEMA 4X and UL standards, the AccuPro 6000-TS ensures reliable and compliant performance in diverse environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The 4-20 mA output (scale powered) is scalable to a user defined value, and is adjustable. Options include high and low set point relay contacts and an audible alarm. The 6000 series allows the user to easily adjust any setting on the spot including adjusting the tare value or selecting a unit directly from any weight display. The user may apply the indicator to filling applications, as well as loading applications. Single or dual-channel operationTouch screen interfaceAlphanumeric color LCD display with easy readability to 0.1 lb. (kg)Displays net and gross weight and %, bar graphs, mA out, tare and set points

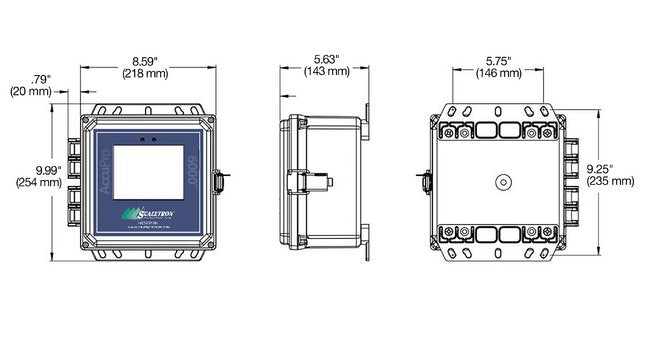

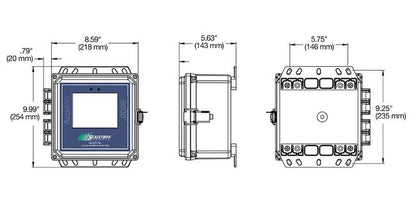

Dimensions Depth
5.63 in | 143 mm
Dimensions Length
9.99 in | 254 mm
Dimensions Width
8.59 in | 218 mm
Options Options
High and low level set point relay contacts - 2 or 4 per channelAlarm active, weight set point active and max net weight relaysAudible alert/alarm with external buzzer supportRemote mounting of indicator box up to 200 feet (61 meters) away from scale baseRemote monitoring capabilities with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network
Power Alternating Current Ac Voltage
100 V | 277 V
Power Current
0.05 A | 0.10 A
Power Frequency
50 Hz | 60 Hz
Specifications Accuracy
0.1 to 0.25% of full scale capacity
Specifications Audible Alarm
Optional 78 dB internal piezo buzzer, external buzzer support.
Specifications Channels
1 | 2
Specifications Communication Option
Remote monitoring with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network.
Specifications Display
4.3 in. Alphanumeric/graphic color LCD touch screen display with adjustable brightness.

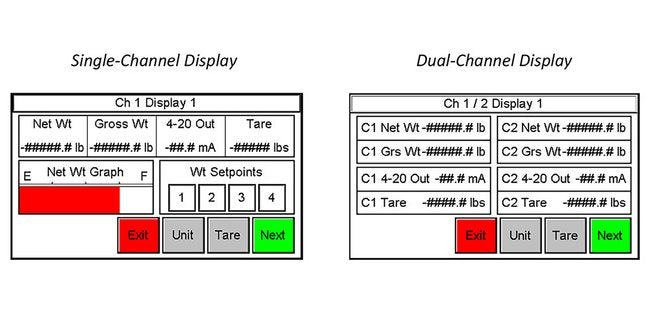

Specifications Display Items
Displays net and gross weight; net and gross percent (%); net and gross weight bar graphs plus mA out, tare adjustment and set point values.
Specifications Display Screens
Up to eleven (11) single-channel and five (5) dual-channel weight displays.
Specifications Display Units
Gallons | Kilograms | Liters | Pounds
Specifications Enclosure
National Electrical Manufacturer Association (NEMA) 4X | Underwriters Laboratories (UL) Approved
Specifications Interface
Touch screen
Specifications Note For Output
1 Output per channel, scale powered
Specifications Remote Option
Can be remotely mounted up to 200 feet from base frame.
Specifications Set Points
2 or 4 Relay contacts optional per channel (high or low) - dry contact 3A relay with N.O and N.C connection.
Specifications Shipping Weight
7 lb
Specifications Standard Output Current
4 to 20 mA
Specifications Warranty
5 Years Full Warranty on All Scale Products
Standard Features Standard Features
Electronic indicator house in NEMA 4X, UL approved wall mount enclosure to provide protection from acidsUp to eleven (11) single-channel and five (5) dual-channel weigh displays4-20 mA analog output for each channel - scale poweredLeak detector inputAbility to mix different scale types on one controllerSimplified menu system for ease of operationStatus check menu for errors, alarms, set points, and load cell(s) check function to ensure stable operationPassword protectionField programmable and calibratable including factory restore setting 6 Foot power cord
