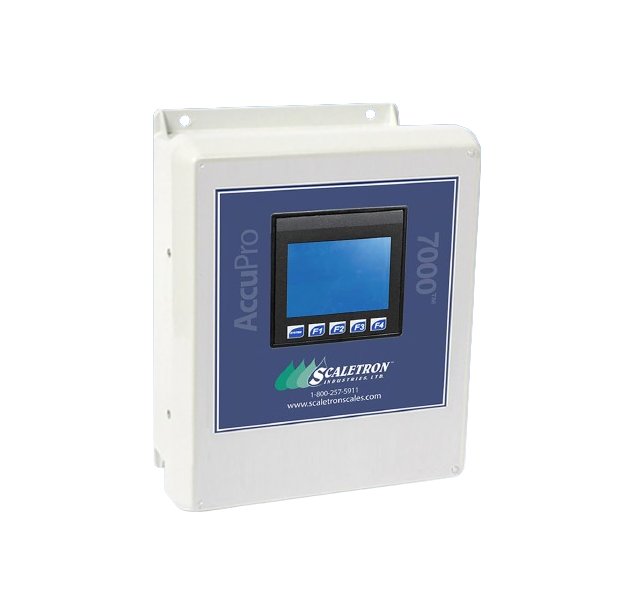

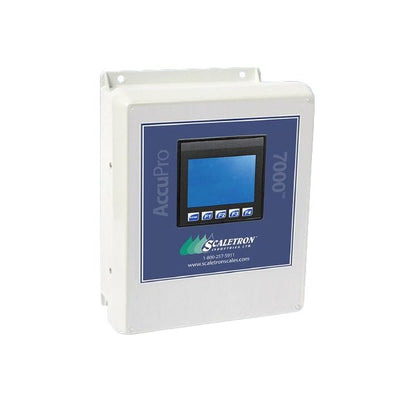

The AccuPro 7000-TS Digital Scale Controller is a top-tier solution designed for precise weight measurement in various industrial settings. With up to 4 channels and a responsive 4.3" color LCD touch screen, this controller offers exceptional accuracy ranging from ±0.1% to ±0.25% of full scale capacity. It supports multiple display units (Gallons, Kilograms, Liters, Pounds) and can provide net and gross weight measurements with ease. Equipped with optional 4-20 mA outputs and advanced features like remote monitoring capabilities and audible alarms, the AccuPro 7000-TS ensures efficient and reliable performance. Backed by a 5-year warranty, this controller is a versatile and robust choice for meeting institutional procurement standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The 4-20 mA output (scale powered) is scalable to a user defined value, and is adjustable. Options include high and low set point relay contacts and an audible alarm. The 7000 series allows the user to easily adjust any setting on the spot including adjusting the tare value or selecting a unit directly from any weight display.One (1) to four (4) channel operationAlphanumeric/graphic color LCD display with easy readability to 0.1 lb. (kg)Displays net and gross weight and %, bar graphs, mA out, tare, set points, feed rate, daily usage, batch and total amount, time to complete

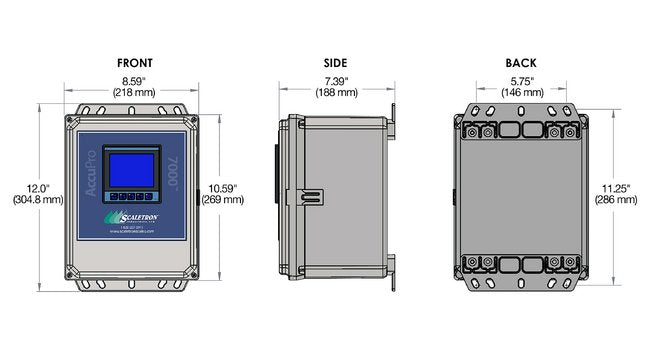

Dimensions Depth
7.39 in | 188 mm
Dimensions Length
12.0 in | 304.8 mm
Dimensions Width
8.59 in | 218 mm
Power Alternating Current Ac Voltage
100 V | 277 V
Power Current
0.05 A | 0.10 A
Power Frequency
50 Hz | 60 Hz
Specifications Accuracy
0.1 to 0.25% of full scale capacity
Specifications Audible Alarm
Optional 78 dB internal piezo buzzer, external buzzer support.
Specifications Channels
Up to 4
Specifications Communication Option
Remote monitoring with either Modbus TCP through ethernet or Modbus RTU via RS-232/RS-485 serial network.
Specifications Display
4.3 in. Alphanumeric/graphic color LCD touch screen display with adjustable brightness.
Specifications Display Items
Displays net and gross weight; net and gross percent (%); net and gross weight bar graphs; mA out, tare adjustment and set point values; on-screen and memory-stored historical data log, feed rate, daily usage, current amount used and days till empty; batch net weight, batch and total amount and time to complete

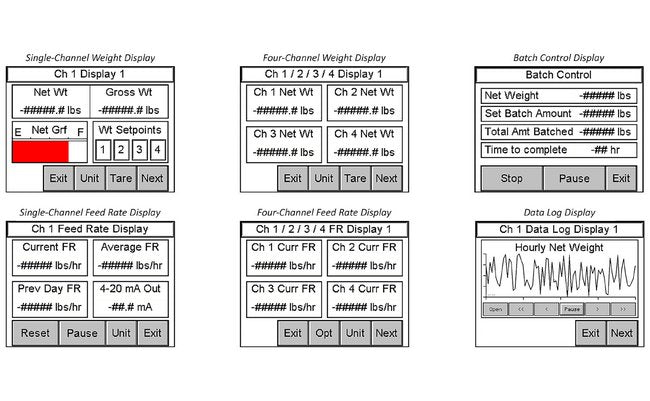

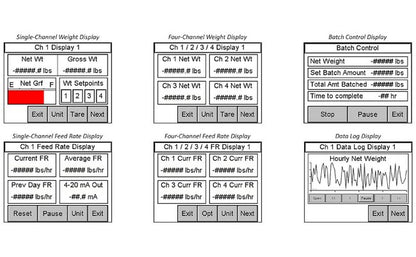

Specifications Display Screens
Up to eleven (11) single-channel and nine (9) multi-channel weight displays.
Specifications Display Units
Gallons | Kilograms | Liters | Pounds
Specifications Enclosure
National Electrical Manufacturer Association (NEMA) 4X | Underwriters Laboratories (UL) Approved
Specifications Interface
Touch screen
Specifications Note For Output
1 Output per channel, scale powered.
Specifications Optional Output Signal
4 to 20 mA
Specifications Remote Option
Can be remotely mounted up to 200 feet from base frame.
Specifications Set Points
2 or 4 Relay contacts optional per channel (high or low), maximum 8 total - dry contact 3A relay with N.O and N.C connection.
Specifications Shipping Weight
7 lb
Specifications Warranty
5 Years Full Warranty on All Scale Products
