ACER E-mill 3VK Milling Machine, 10 x 50 Inch
ACER E-mill 3VK Milling Machine, 10 x 50 Inch
SKU:MIL-99ae68
Experience precision and durability with the ACER E-mill 3VK Milling Machine - ideal for professional machining tasks.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
ACER E-mill 3VK Milling Machine, 10 x 50 Inch
$18,999.00
Quantity: 1
Claim Your Seller Account
ACER E-mill 3VK Milling Machine, 10 x 50 Inch
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

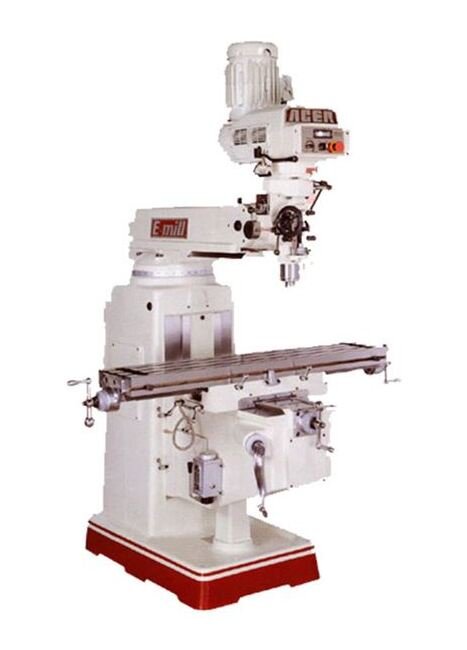

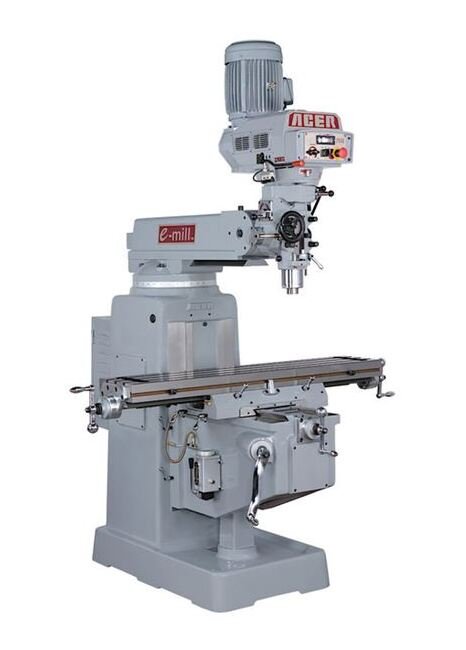

The ACER E-mill 3VK Milling Machine is a powerhouse in precision machining. Featuring a 3 HP spindle inverter motor, it offers efficient cooling, hand-scraped contact surfaces, and MEEHANITE casting for durability. With a top brand Vector-type AC frequency inverter drive, this machine ensures optimal performance. Its precision components, such as the hardened knee axis and ground lead screws, guarantee accuracy and longevity.
Product Specifications
Features Features
3 HP spindle inverter motorFan cooling system dissipates heat efficientlyHand-scraped contact surfaces between turret and columnMEEHANITE castingTop brand Vector-type AC frequency inverter driveTurn-in the hand handleProtective automotive paint ensures life-long appearanceDish-in coolant base3 HP variable speed from 60 to 4,500 RPMOne piece quill pinion & shaftExtra oiler lubricates the quill in its housingPrecision hardened & ground knee axis to HRC 52°Table surface is HRC 52°All lead screws are ground finishedDovetail ways of X and Y axes are hardened and groundChrome plated chip guards
Technical Specs Brands
ACER
Technical Specs Cross Travel Y Axis
16 in
Technical Specs Head Moves Right To Left
90 º
Technical Specs Longitudinal Travel For 10 X 50 Inch In Working
34 in
Technical Specs Main Motor
3 hp
Technical Specs Model
E-mill 3VK
Technical Specs Power Quill Feeds
0.0015 in/rev | 0.003 in/rev | 0.006 in/rev
Technical Specs Quill Diameter Chromed
3-3/8 in
Technical Specs Quill Travel
5 in
Technical Specs Ram Travel
20 in
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs T Slot Number And Size
3 in | 5/8 in
Technical Specs Vertical Knee Travel
16 in
Technical Specs Weight
3050 lb
Technical Specs Working Table Longitudinal Travel
34 in
