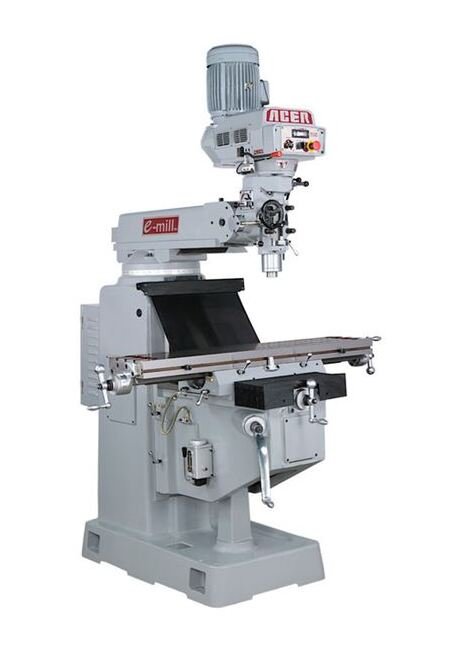

ACER E-mill 3VKH 10x54 Gray Milling Machine
ACER E-mill 3VKH 10x54 Gray Milling Machine
SKU:MIL-d8c0e9
Precision and power meet in the ACER E-mill 3VKH 10x54 Gray Milling Machine, perfect for industrial efficiency.
Regular price
$20,999.00
Regular price
Sale price
$20,999.00
Unit price
per
Initiate Order
ACER E-mill 3VKH 10x54 Gray Milling Machine
$20,999.00
Quantity: 1
Claim Your Seller Account
ACER E-mill 3VKH 10x54 Gray Milling Machine
$20,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The ACER E-mill 3VKH 10x54 Gray Milling Machine is a precision-engineered powerhouse designed for industrial efficiency. Equipped with a 3 HP inverter motor with fan cooling system, it delivers optimal performance. Featuring grease fittings for lubrication, hardened and ground axes, and a vector-type AC frequency inverter drive, this machine ensures accuracy and durability. With CE electric components and compliance with industry standards, including TAA considerations, this milling machine is ideal for institutional buyers seeking high-quality equipment.
Product Specifications
Features Features
3 HP inverter motor with fan cooling system dissipates heat efficiencyGrease fitting for lubricating the bull gearOne piece quill pinion & shaftPrecision hand scraped contact surfaces between turret and columnX, Y and knee axes are hardened and ground to HRC 52 degreesVector-type AC frequency inverter driveHardened & ground table top to HRC 52 degreesLicensed Taiwanese Meehanite castingDish-in coolant baseAuto lubrication systemCE Electric componentsExtra oiler lubricates the high-low moving deviceExtra oiler to lubricate the quillPrecision ground ram ways within 0.004" accuracyGround screws and Split nut assembly allowing for 0.005" BacklashPrecision ground table guide line to 0.0002" over 20"Standard accordion type way coverTurcite-B coated saddle ways230V / 460V three phase ready and available to run at single phase 230V when specified
Note Note

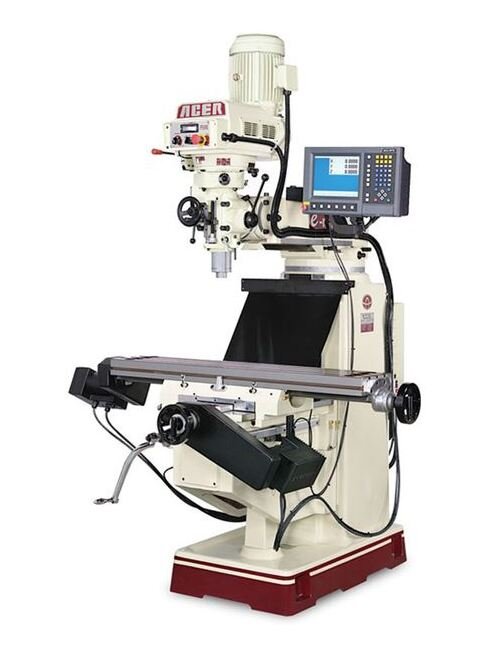

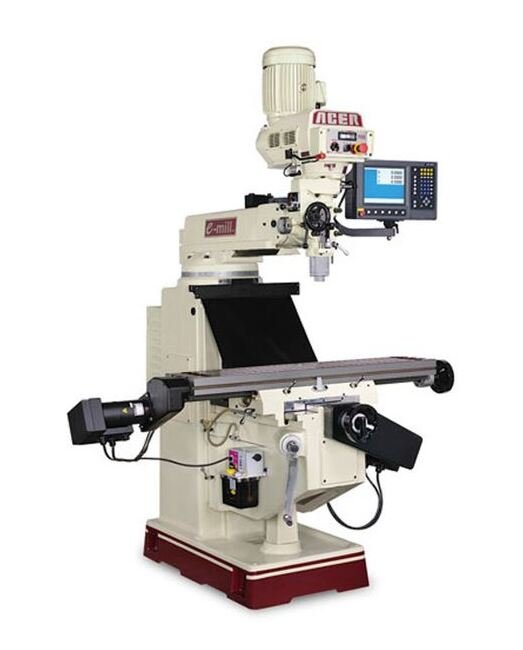

White color also available.
Optional Accessories Optional Accessories
Operation manual with parts manual | R8 drawbar | Tool Box with tools | Way covers
Technical Specs Brands
ACER
Technical Specs Head Moves Right To Left
90 º
Technical Specs Head Tilting Bank In Degrees
45 º
Technical Specs Head Tilting Front In Degrees
45 º
Technical Specs Main Motor
3 hp
Technical Specs Model
3VKH
Technical Specs Power Quill Feeds
0.0015 in/rev | 0.003 in/rev | 0.006 in/rev
Technical Specs Quill Diameter Chromed
3-3/8 in
Technical Specs Quill Travel
5 in
Technical Specs Ram Travel
20 in
Technical Specs Spindle Drive
Variable
Technical Specs Spindle Speeds
60 to 4500 rpm
Technical Specs Spindle Taper
R8
Technical Specs T Slot Number
3 in | 5/8 in
Technical Specs Vertical Knee Travel
19 in
Technical Specs Weight
3300 lb | 3450 lb
Technical Specs Working Surface
10 x 50 in
Technical Specs Working Table Cross Travel
17 in
Technical Specs Working Table Longitudinal Travel
32-1/2 in
